RC4WD ION STYLE 71 1.9" BEADLOCK WHEELS

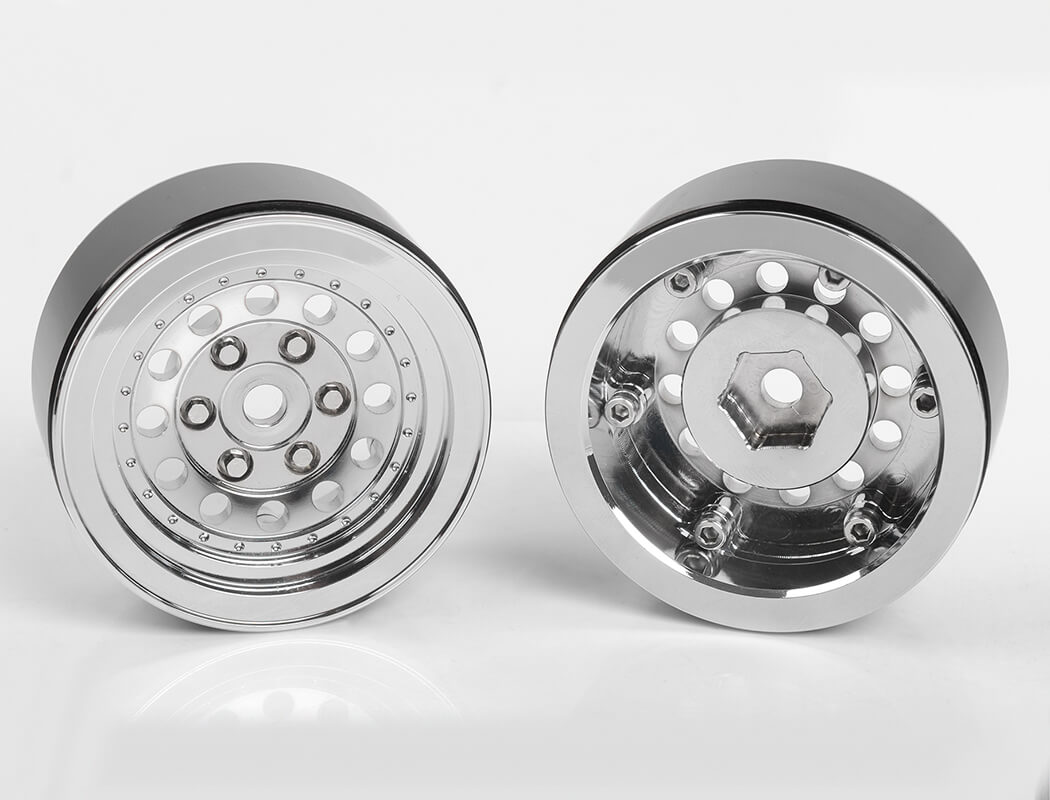

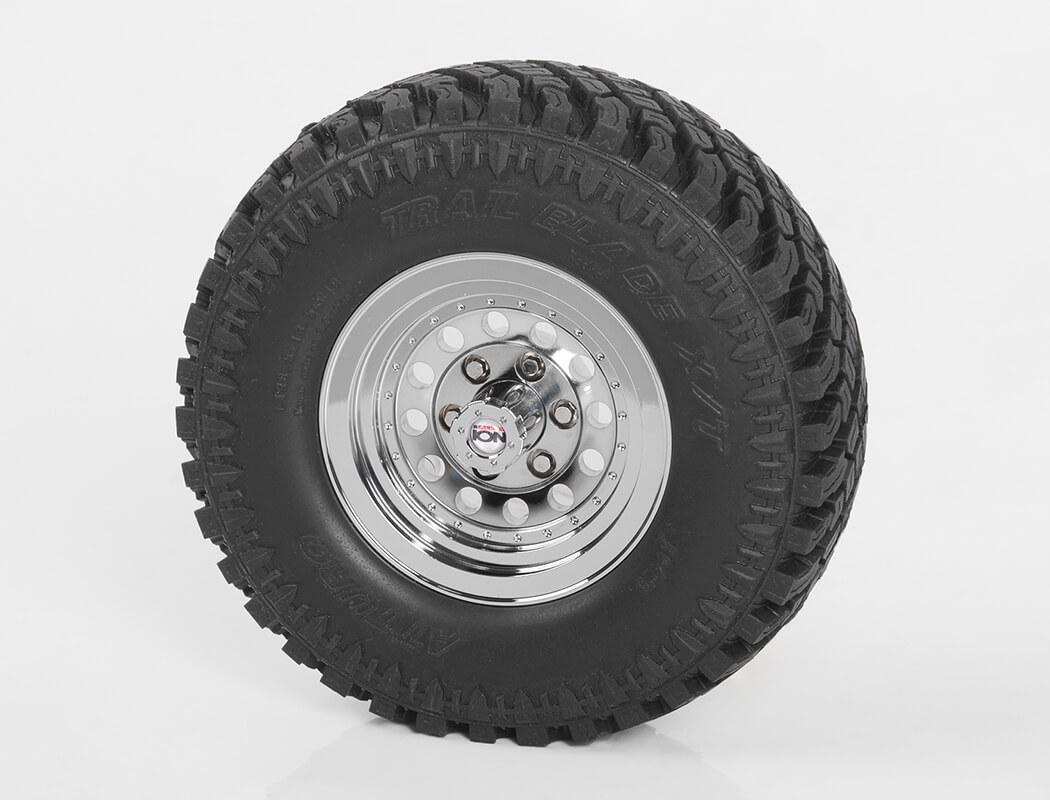

Give a classic look to your scale RC truck by mounting the first Officially Licensed aluminum RC wheel from ION. These RC4WD ION Style 71 1.9" Beadlock Wheels feature a slick chrome design with the look that you might find on a truck in the 80's, only in 1/10th scale. As always, you can expect that we went the extra mile to have as much detail as possible, including installing the scale ION Alloy emblem sticker inside the wheel hub to add to the style on these RC wheels. We designed this internal beadlock wheel to mount using 6 Socket Head Cap Screws M2.5 X 8mm in the back of the wheels. This makes the wheel look great from the front and back by hiding the screws that hold it together. The front of the wheel has 6 Miniature Scale Hex Bolts (M2.5 X 4mm) to mimic lug bolts, however, these are not functional as the 12mm mounting hub is machined into the wheels. To finish it off, these also have a scale hub with a 5mm nut inside it along with a tool to help mount them to the truck.

Specifications

Hex Size: 12mm
Wheel Size: 1.9"
Wheel Width: 1.02" / 26.0mm
Positive Offset: 0.05" / 1.7mm
Outside Diameter: 2.14" / 54.0mm
Each Wheel Weighs: 2.40oz / 68.0g
Colour: Silver

What's Included

• 4 x RC4WD ION Style 71 1.9" Beadlock Wheels
• 4 x Locking Hubs
• 1 x Miniature Scale He x Bolt Tool for M2.5 & M3 Scale Bolts (2.5mm Hex)
• 1 x Locking Hub Installation Tool
• 1 x ION Decal Sheet

Replacement Hardware

• RC4WD Miniature Scale Hex Bolts (M2.5 X 4mm) (Silver) (Z-S1563)
• Socket Head Cap Screws M2.5 X 8mm (Z-S0828)
• Miniature Scale Hex Bolt Tool for M2.5 & M3 Scale Bolts (2.5mm Hex) (Z-S0635)

Optional Parts

• RC4WD 4pc Precision Metric Hex/Nut Driver Set (Z-F0030)

Notes

• CNC Machined Billet Aluminum
• Fits RC4WD Trail Finder 2, Trail Finder 3, Vaterra Ascender, TRX-4, HPI Venture FJ Cruiser, Axial Wraith, SCX10 and SCX10 II
• Installing on Traxxas TRX-4 trucks requires the RC4WD 12mm Wheel Hex Conversion for Traxxas TRX-4 (Z-S1844)
• Due to many different methods to design tires and wheels, we have no control over other manufacturers products. So we can only tell you that RC4WD tires and wheels work together. In some cases our wheels and tires will work with other brand wheels and tires, but we can not guarantee the outcome
• ION is a registered trademark of the ION Wheel company. The ION logo is property of ION Wheels and used under license to RC4WD
