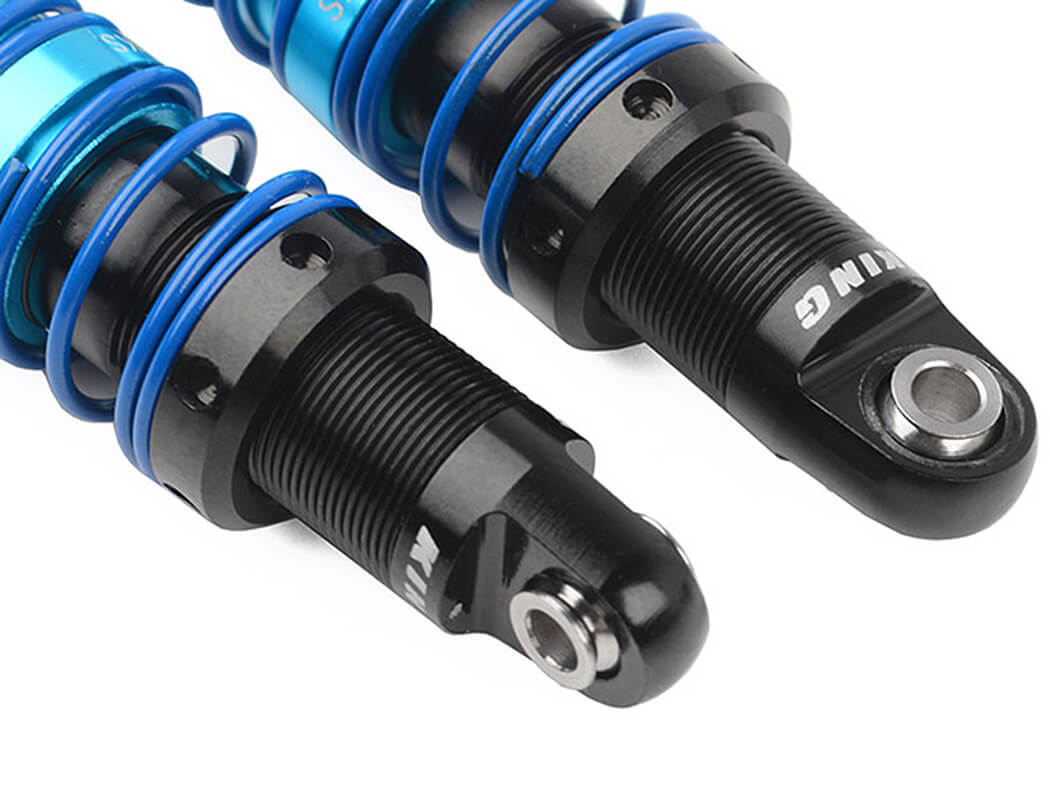

RC4WD KING OFF-ROAD RACING SHOCKS 70MM (PR)

These are officially licensed from King Off-Road Shocks. These new shocks feature a completely new design from the ground up and are built to handle rough and rocky terrains. Bolt up and upgrade your scale build with a new set of these realistic-looking shocks!

Features

• Machined Billet Aluminum
• King Laser Etched on Top Cap and Retainer Ring
• Dual Spring Design
• X-ring Gaskets
• Titanium Nitride Coated Shock Shafts

Specifications

Hole to Hole (Compressed): 2.24in / 57mm
Hole to Hole (Uncompressed): 2.75in /70mm
Overall Length: 3.14in / 80mm
Travel Length: 0.51in / 13.0mm
Shock Body OD: 0.57in / 14.6mm
Shaft OD: 0.15in / 3.9mm
Each Shock Weighs: 0.61oz / 17.5g

What's Included

• 2 x RC4WD King Off-Road Racing Shocks (80mm)
• 2 x White Shaft Guides
• 4 x 3 x 5.5 x 2.7mm Black Spaces
• 2 x 3 x 5.5 x 2mm Black Spaces
• 1 x King Decal Sheet

Fits

• Traxxas TRX-4 Land Rover Defender
• Traxxas TRX-4 '79 Bronco Ranger XLT
• Traxxas TRX-4 Sport Kit
• Traxxas TRX-4 Sport
• Traxxas TRX-4 Crawler Kit
• Traxxas TRX-4 Mercedes-Benz G 500 4x4
• Traxxas TRX-4 Chevrolet K5 Blazer
• Traxxas TRX-6 Mercedes-Benz G 63 6x6
• RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Autobiography Limited Edition) (Z-RTR0043)
• RC4WD Gelande II RTR W/ 2015 Land Rover Defender D90 Body Set (Heritage Edition) (Z-RTR0044)
• RC4WD Gelande II RTR Truck w/Cruiser Body Set (Red) (Z-RTR0047)
• RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051)
• RC4WD Gelande II Truck Kit 1/10 Chassis Kit (Z-K0060)
• RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set (Z-K0064)

Notes

• Designed with Titanium Nitride (TiN) shock shafts for long term wearability.
• X-ring Gaskets provide double the oil seals in the shock cartridge.
• Ball ends are a direct fit for Traxxas TRX-4 axle and shock hoop mounts.
• Shocks do not come with oil. It is highly recommended to build the shocks with silicone shock oil and thick shock grease on the x-rings for maximum performance.
• Additional X-ring spacers are included to fine tune the shocks. A 2.7mm spacer is installed in the shocks providing maximum sealing compression. The 2.5mm spacer can be used allowing the shaft to move easier through the X-rings.
• When installing on Axial SCX10-3 please use a 5mm Black Spacer with M3 Hole (Z-S0821) on the shock tower.
