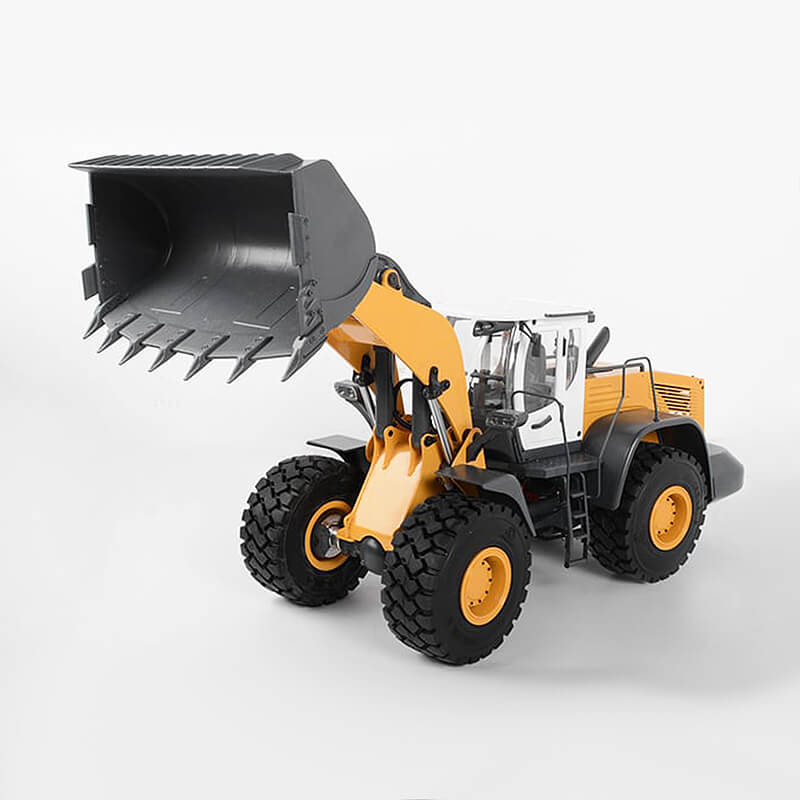

RC4WD 1/14 EARTH MOVER 870K HYDRAULIC WHEEL LOADER (YELLOW AND WHITE)

The Earth Mover 870K is the most powerful wheel loader available today, created for the hobbist who requires reliability and high production in bulk earth moving or construction projects. CNC machined metal parts, fully assembled, ready to work! Massive power through 350kV brushless system.

Features

• CNC Machined Metal parts
• Molded Steel bucket
• 6 channel 2.4Ghz radio
• Optimized Steel Hydraulic system
• Scale operator station (can fit a driving figure)
• Massive 29.5-25L-5 Tires
• Reliable hydraulic valve and adjustable pump
• Heavy Duty Hoses (OD 4.5mm Nylon, ID 2.5mm)
• Powder coated in yellow
• Brushless system (hydraulic)
• 40A brushless ESC with BEC
• Kv brushless monster torque Motor
• Realistic non functional disk break
• Scale ABS plastic interior
• Wheel with planetary gearbox build-in
• 2 speed full metal transmission (1:16 and 1:4 gear ratio)
• Realistic full metal Axles
• Run time is: 30 minutes (6500mAh Battery)
• Steel Machined oil pump (45mm X 30mm X 15.5mm)
• Maximum bucket force: 70kg / 154pounds
• Lipo Cutoff

Specifications

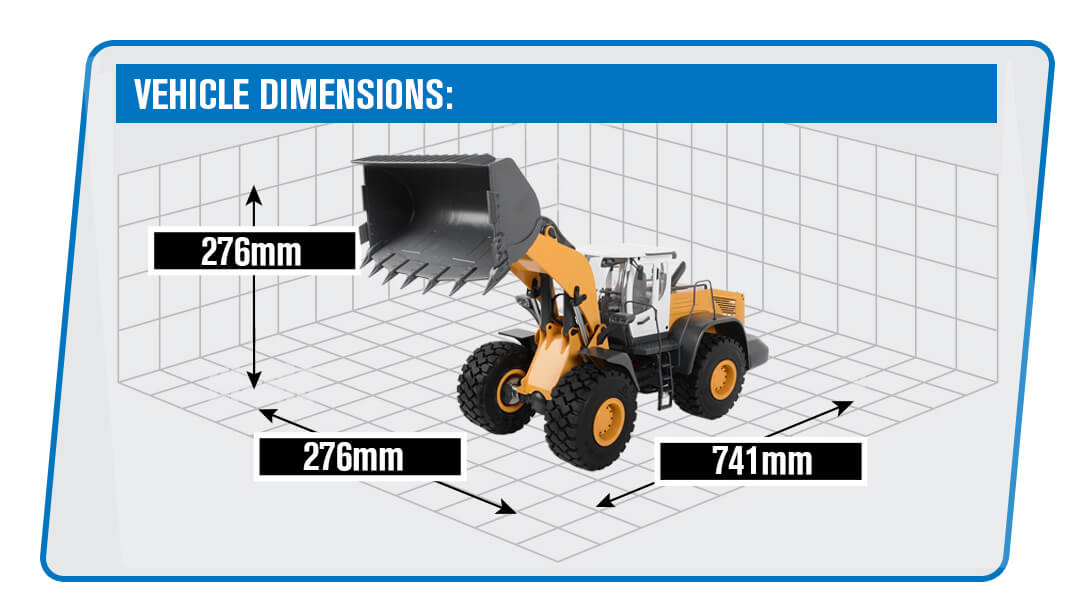

Scale: 1:14
Length: 741mm / 29inch
Width: 276mm / 11inch
Height: 276mm / 11inch
Maximum Bucket Height: 461mm / 18inch
Maximum Bucket Up And Down Angle: 46 to 64 degrees
Maximum Bucket Left And Right Angle: 38 degrees
Wheel Base: 284mm
Dead Weight: 20.5kg / 45lbs
Total Mass Load: 32kg / 70lbs
Operating Oil Pressure: 20Bar, 290psi

What's Included

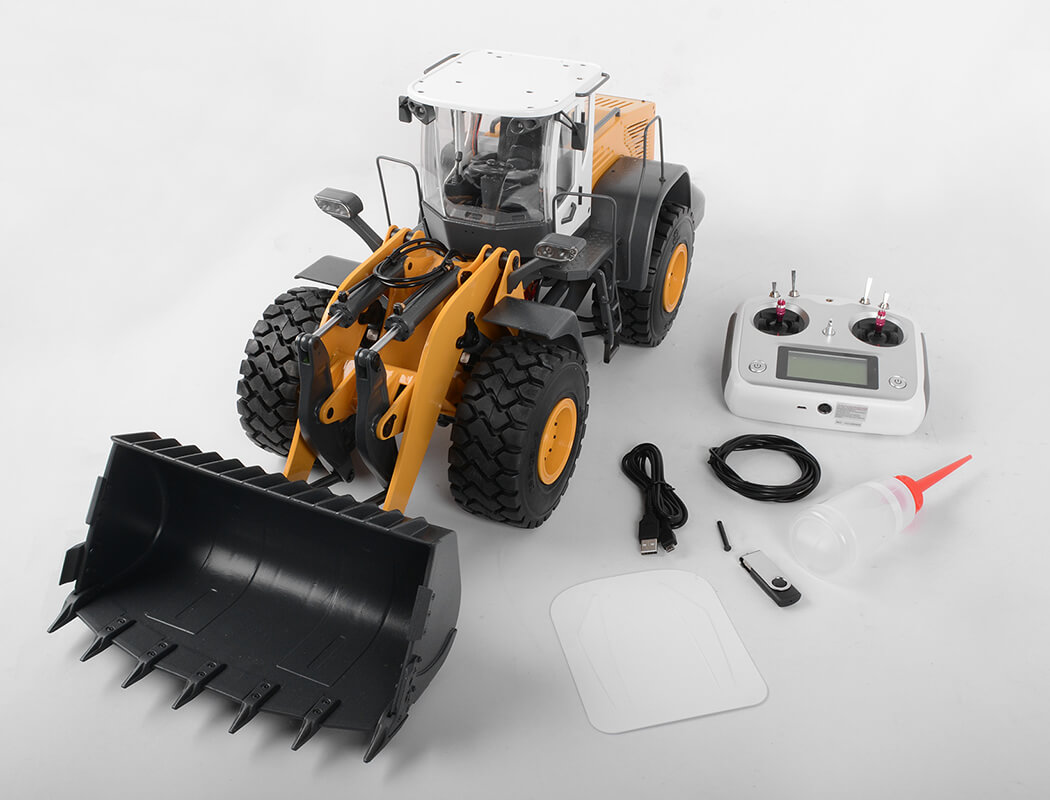

• 1/14 Scale Earth Mover 870K Hydraulic Wheel Loader (Yellow and White)

Required To Complete

• 5000mAh 11.1V 50C 3S1P Short-Size Lipo Battery Pack with XT60 Plug
• Compatible Battery Charger
• 4 x AA Batteries for Radio (Z-S1718)
• Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)

Notes

• While some components may come assembled, we recommend checking the hardware and screws are all properly secure, especially after shipping. As an option, you may want to apply thread lock to some of the installed hardware.
• ESC Supports bullet Connector
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.
• Battery Size should be within 140x45x25MM (LxWxH)
