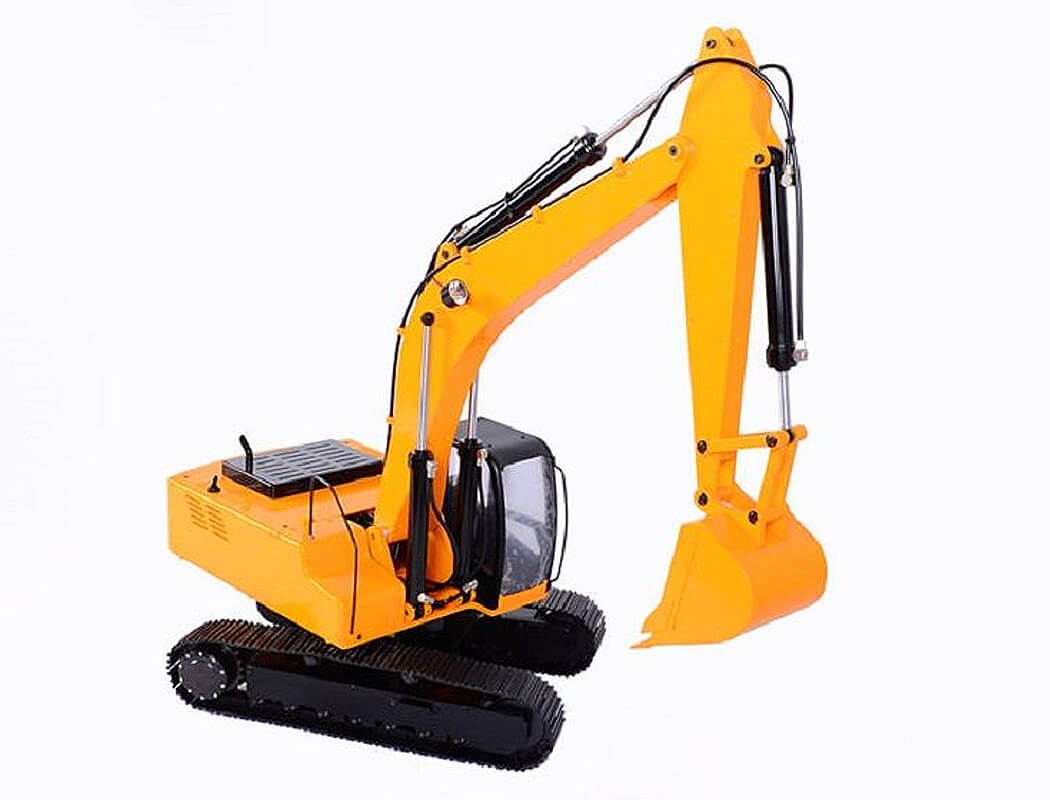

RC4WD 1/12 SCALE EARTH DIGGER 4200XL HYDRAULIC EXCAVATOR (RTR) (VERSION 2.0)

Earth Digger 4200 hydraulic excavator is the most powerful excavator available today, created for the customer who requires reliability and high production in bulk earth moving or construction projects. CNC machined metal parts, fully assembled, ready to dig! Massive power through 380KV brushless system.

Features

• 100% CNC Machined Aluminum (except Track and Hydraulic Pump)
• Custom 8 Channel 2.4Ghz radio
• High Intensity Light (Super bright) (3 Watt)
• Optimized Steel Hydraulic system
• Scale operator station (can fit a driving figure and seat)
• Steel Molded Tracks (50mm Width, 45 grade carbon Steel)
• Efficient under carriage with Tracks
• Reliable Hydraulic valve and Adjustable Pump
• Heavy Duty Hoses (OD 4.5mm Nylon, ID 2.5mm)
• Bearing based undercarriage design
• Undercarriage rotate 360 degrees (Endless)
• Powder coated in yellow

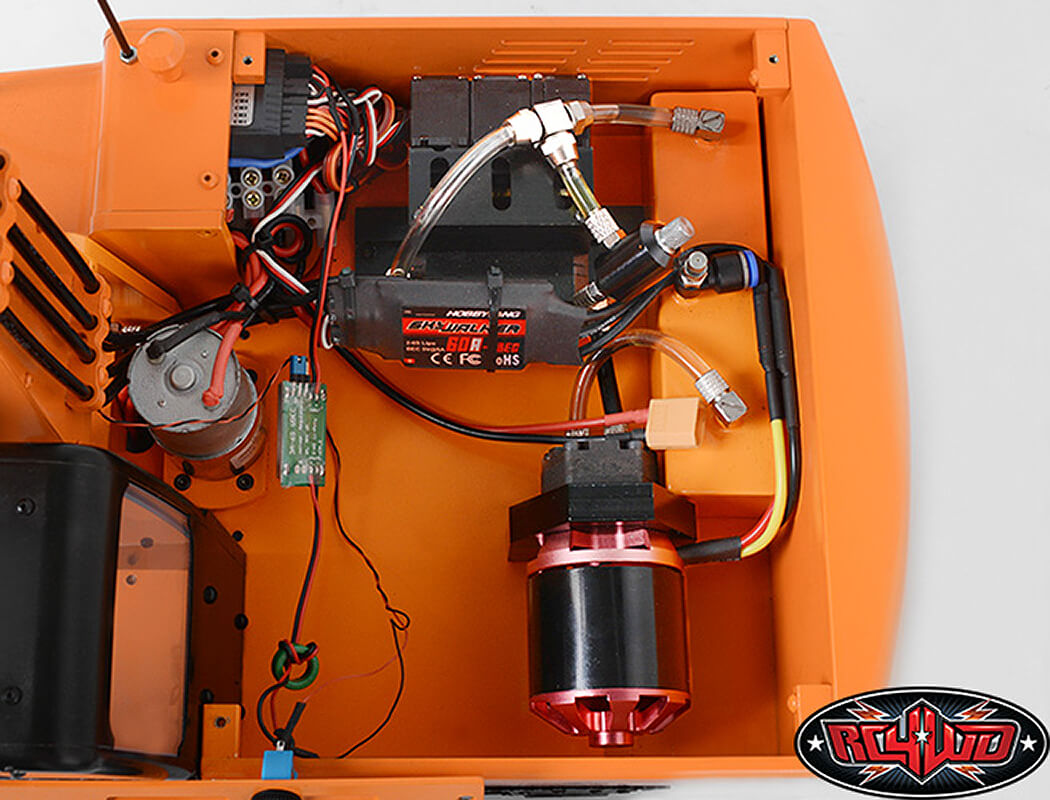

• Massive brushless system (Hydraulic)
• 60A brushless ESC with BEC
• 350KV brushless monster torque motor (4130 OutRunner, 6mm Shaft)
• Neodymium magnets
• Belt/track is controlled individually
• XT60 Power Plug Female
• Lipo Cutoff
• Run time is: 40-50 minutes (6500mAh battery)
• Steel Machined Oil Pump (45mm X 30mm X 15.5mm)
• Digging force: 15kg / 33pounds
• Driving Speed: 310 Meter per hour

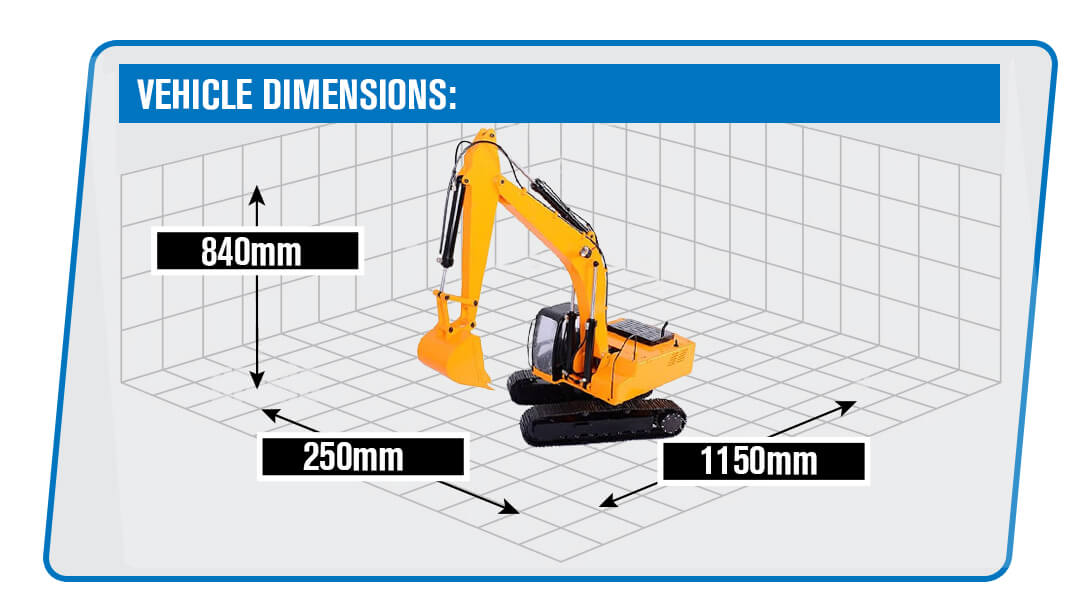

Specifications

Scale: 1:12
Dig Depth: 495mm / 19.4inch
Height of Cabin: 155mm / 6.1inch
Length: 1.15meter / 45inch
Width: 250mm / 9.8inch
Height: 840mm / 33inch
Dead Weight: 20kg / 44lbs
Operating Oil Pressure: 20Bar, 290psi
Inside Cab Length: 4.72in / 120mm
Inside Cab Width: 2.55in / 65mm
Inside Cab Height: 5.31in / 135mm

What's Included

• 1/12 JDCustoms Earth Digger 4200XL Hydraulic Excavator (RTR) (Version 2.0)

Required To Complete

• Supply Voltage: 12V, XT60 Connector, We recommend=3S, 25C LiPo Battery.
• Compatible Battery Charger
• 8 x AA Batteries for Radio
• Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)

Notes

• Battery Size should be within 160x51x73MM(LxWxH).
• While some components may come assembled, we recommend checking the hardware and screws are all properly secure, especially after shipping. As an option, you may want to apply thread lock to some of the installed hardware.
• ESC Supports XT60 Connector
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.
