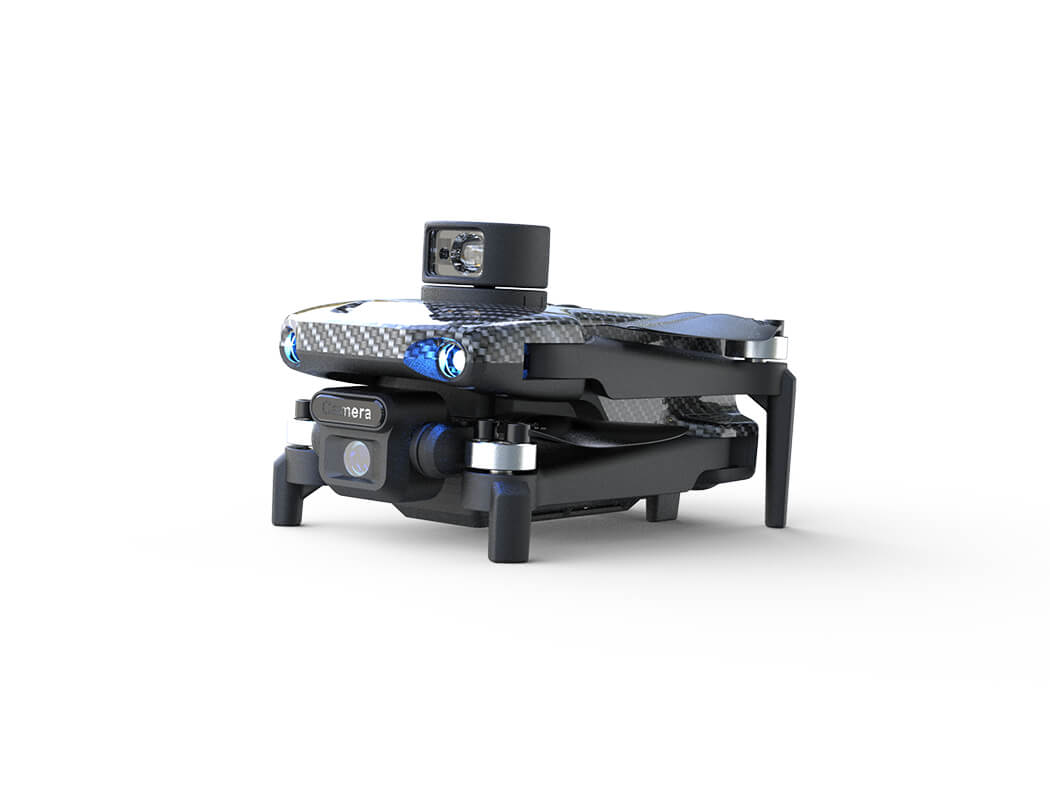

UDI RC RAGE PRO MINI DRONE

Features

• GPS Positioning
• Optical Flow Positioning
• Altitude Hold Mode
• APP Control

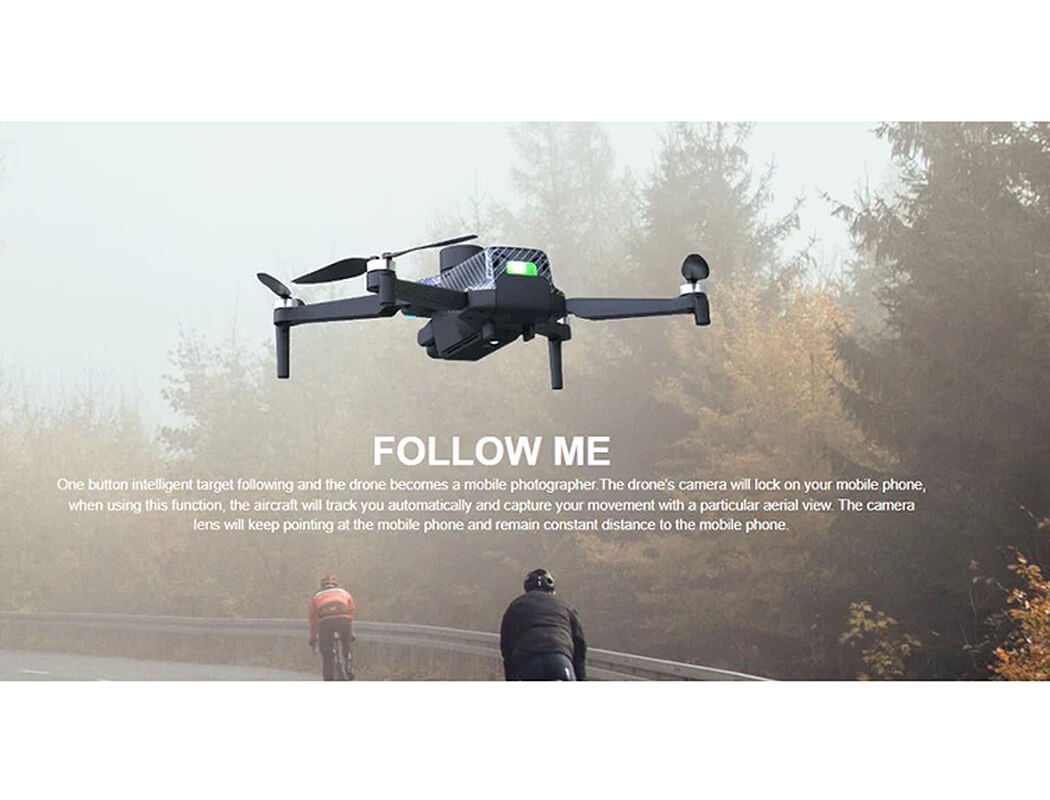

• Follow Me
• Auto Return Home

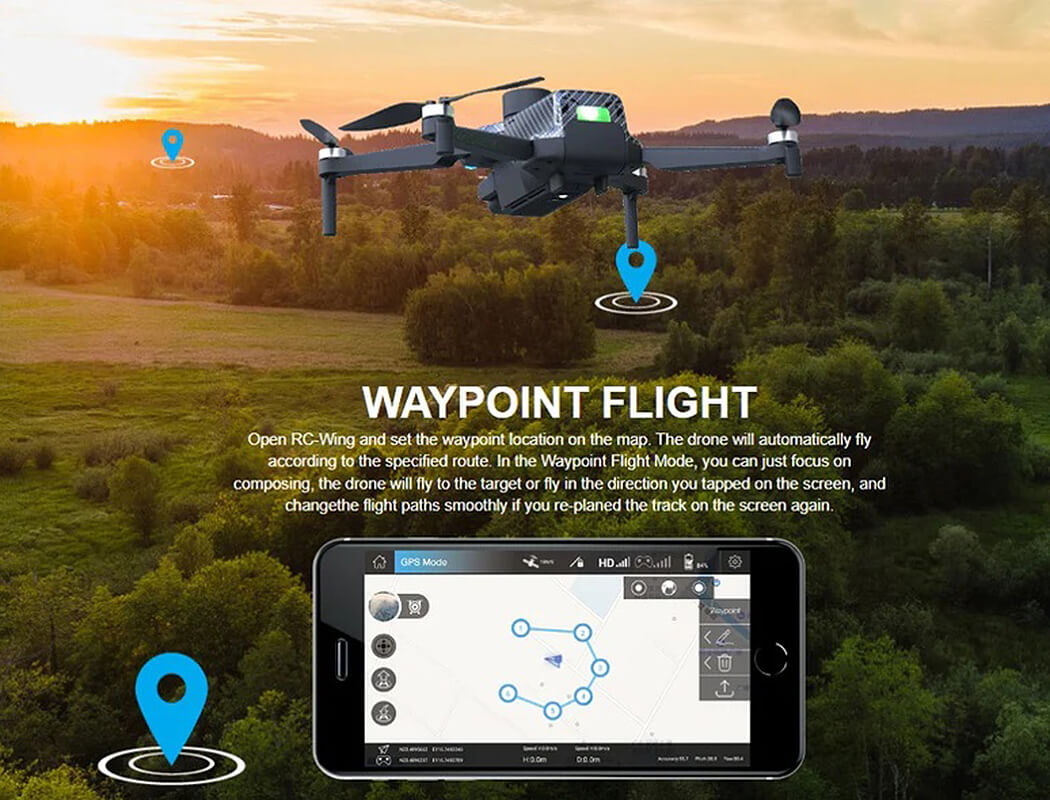

• Functional Waypoints
• Surround Flight
• Real-time FPV
• One button take off/landing, Up, Down, Forward, Backward, Turn left/right, Fly left/right

Specifications

Weight (typical value): 196.2g
Folded Size: 152×98×83mm
Diagonal: 300mm(Diagonal motor shaft spacing)
Propeller Radius: 70.5mm
Maximum Ascent Rate: 4.0m/s
Maximum Descent Rate: 2.5m/s
Maximum Speed: About 24km/h
Flight Altitude Limit: 250m
Flight Time: 28-32 minutes(calm)
Wind Speed: About level 3
GNSS: GPS / GLONASS
Operating Frequency: 2.4Ghz / 5G wifi
App Name: RC-Wing
Image Transmission System: 5G wifi
Real Time Image Transmission: 720 P@20 fps
Operation System: Suitable for mobile phones in the IOS 9.0 or later and Android 4.4 or later system

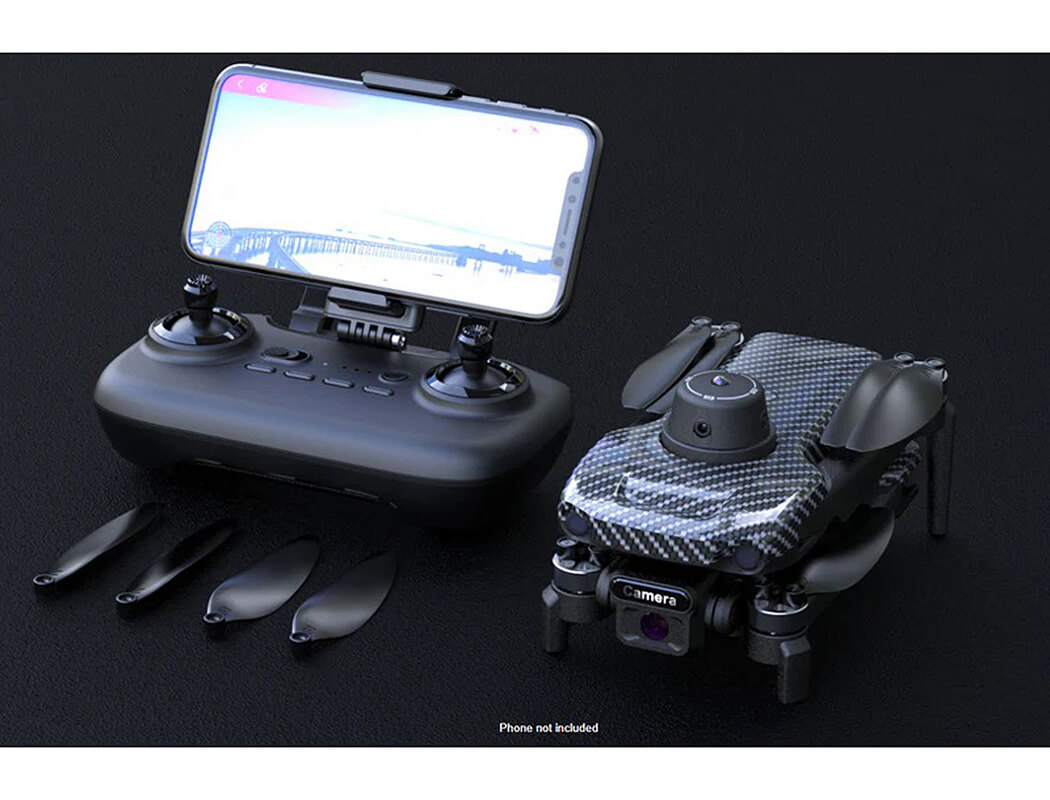

Transmitter Specifications
Operation Frequency: 2.4Ghz
Transmission Distance: 300-600m (no outdoor interference)
Battery: 3.7V, 1200mAh rechargeable lithium battery (built-in)
Mobile Phone Holder: Smartphone

Camera Specifications
Image Resolution: 3840×2160P
Static Photography Mode: Single shoot
Video Resolution: 1920×1080 P
Image Mode: RGB
Frame Rate: 25
File System Support: FAT 32
Image Format: JPEG
Video Format: MP4, H.264
TF Card: Not Supported

Gimbal
Stable: Single axis(tilt)
Controllable Range: Tilt -90 ° to 0 °

Flight Battery Specifications
Capacity: 3000 mAh
Voltage: 7.4 V
Battery Type: LiPo
Net Weight: 112 g
Charging Time: About 6 hours

Important Drone Safety Information

Safe flying is YOUR responsibility.

Update 21 October 2019: Drone and model aircraft registration and education service is mandatory from: 30 November 2019

Anyone responsible for a drone or unmanned aircraft (including model aircraft) weighing between 250g and 20kg will need to register as an operator. The cost for this will be £9 renewable annually.

Anyone flying a drone or unmanned aircraft (including model aircraft) weighing between 250g and 20kg will need to take and pass an online education package. This is free and renewable every three years.

As per CAA guidelines, any drone lower than 250g in weight, but inclusive of a camera must be also be registered. Click here for drone registration requirements as outlined by the UK Civil Aviation Authority.

Both of these requirements become law on 30 November 2019.

From 5 November 2019 the system will be available at Register-drones.caa.co.uk.

For full details please visit: https://www.caa.co.uk/

Be Safe - Be Lawful - Be Drone Aware!

We fully encourage safe and responsible flying

The Dronecode:

When you fly a drone in the UK it is your responsibility to be aware of the rules that are in place to keep everyone safe. Follow these simple steps to make sure you are flying safely and legally.

Full details of the Drone Code: https://dronesafe.uk/drone-code/

We recommend you visit the CAA website for full information on safe and responsible flying.

The Civil Aviation Authority website (UK): https://www.caa.co.uk/Consumers/Unmanned-aircraft-and-drones/
