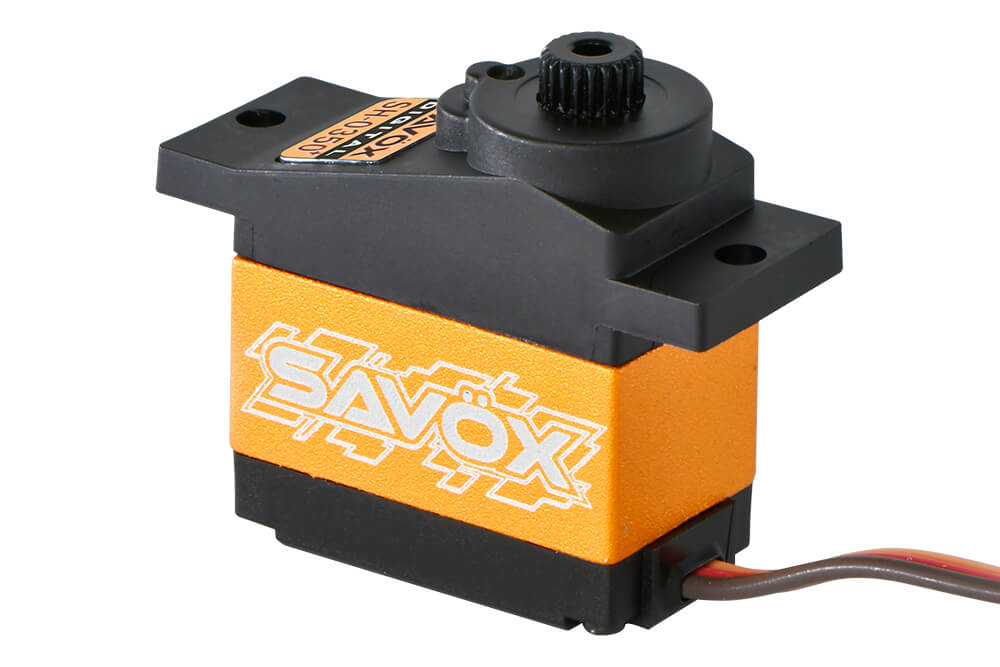

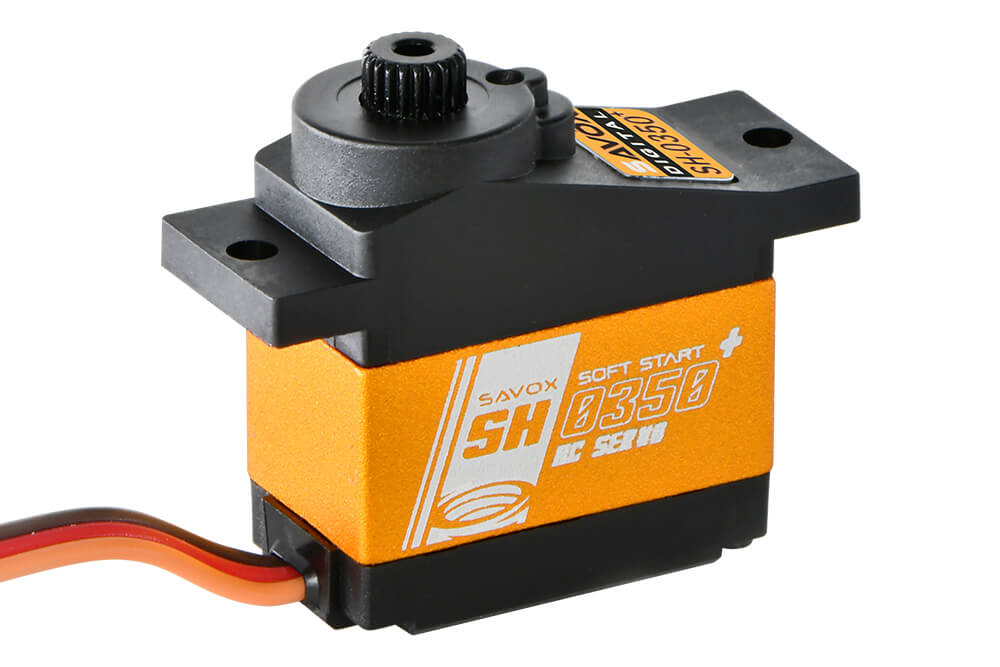

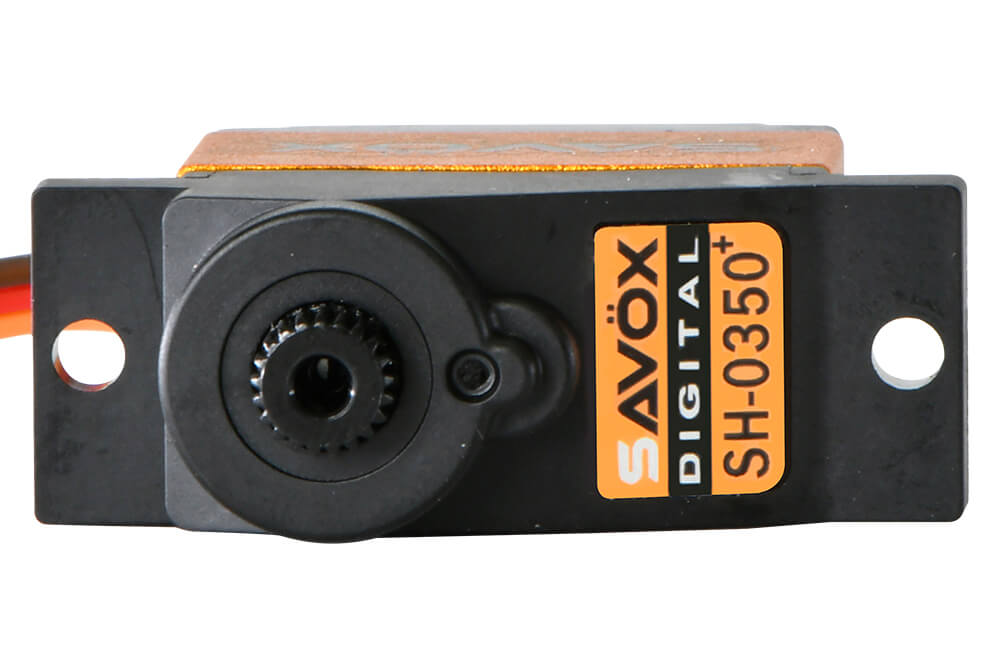

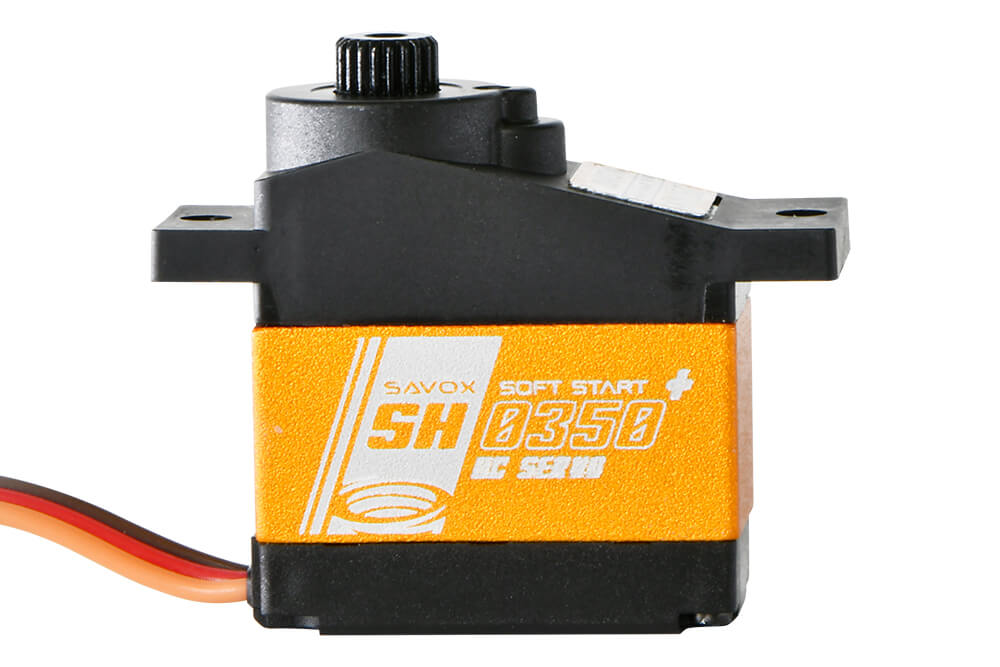

SAVOX MICRO SIZE DIGITAL SERVO PLASTIC GEAR 2.6KG@6.0V PLUS

Micro size digital servo with refined design that brings out extraordinary performance.Ideal for CCPM and Rudder on 450 level heli and Park Fly Airplane.

Features

• Over-spec refined design out performs ordinary micro size servo
• The metal case design looks awesome and allows for cooler and smoother operating temps
• Strict production and quality control of plastic components
• Ideal for 250/450 class heli's and park flyer airplanes

Specifications

Dimensions(mm): 22.8X12.0X25.4
Weight(g): 12.3
Speed(@4.8V sec/60): .21
Torque(@4.8V oz-in): 30.6
Speed(@6.0V sec/60): .16
Torque(@6.0V oz-in): 36.1

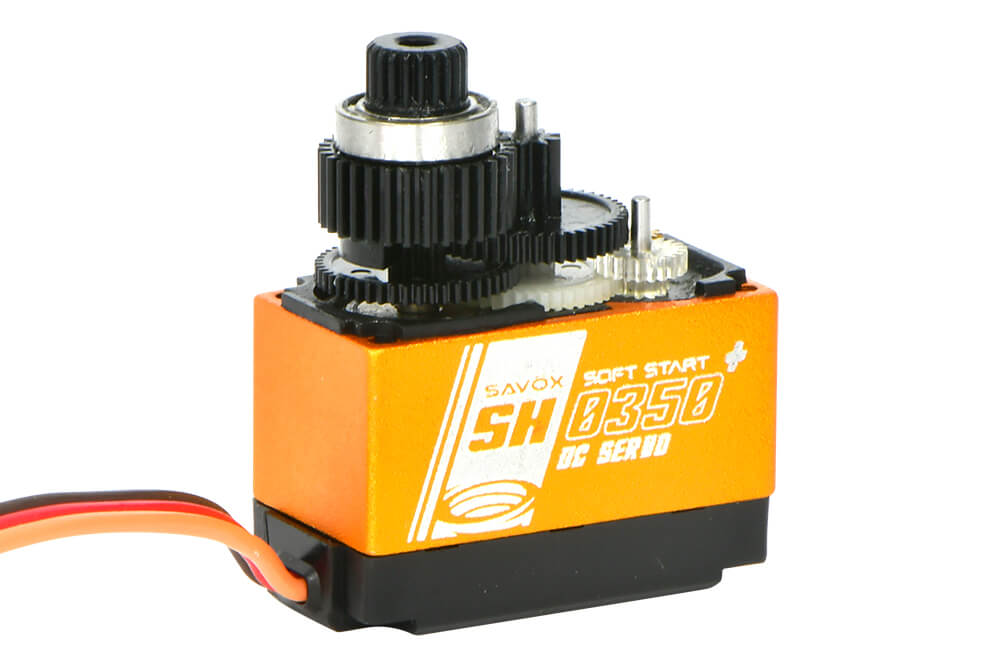

Gear: Industrial Plastic
Bearing: 1BB
Case: Aluminum
Spline: 21 Tooth Spline
Frequency: 200-250hz
Pulse Width Frequency: 1520
