SAVOX HV DIGITAL BRUSHLESS SERVO 25KG/0.08s@7.4V - PLUS

  • Part Number: SAV-SB2274SG+
  • Brand: Savox
  • Availability: In Stock
RRP : £103.99 Where To Buy?

Description

This is the Savox SB2274SG PLUS High Speed Brushless Unique Steel Gear Digital Servo.

SB2274SG PLUS Features:

  • Combines leading edge technology with super high 12 bit (4096) resolution and unique steel gears.
  • Super light-weight.
  • Brushless motor provides extremely high speed, incredible efficiency, and amazingly low power consumption.
  • The full Aluminum case design not only looks good but also allows for cooler and smoother operating temps.
  • Our servos are totally green - from materials to production, these servos are environmentally friendly.
  • Ideal for 1/8th or 1/10th scale trucks and buggies (electric & nitro) and giant scale aircraft. Also suitable for use in boats and helis.

Spec Check:

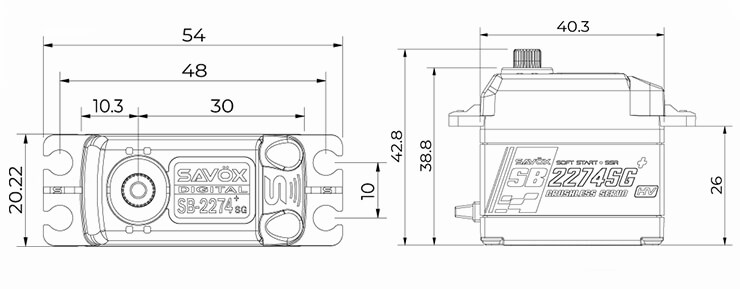

  • Dimensions(mm): 40.3x20.2x38.5
  • Weight(g): 69.0
  • Speed(@6.0V sec/60): .105
  • Torque(@6.0V oz-in): 277.7
  • Speed(@7.4V sec/60): .08
  • Torque(@7.4V oz-in): 347.2

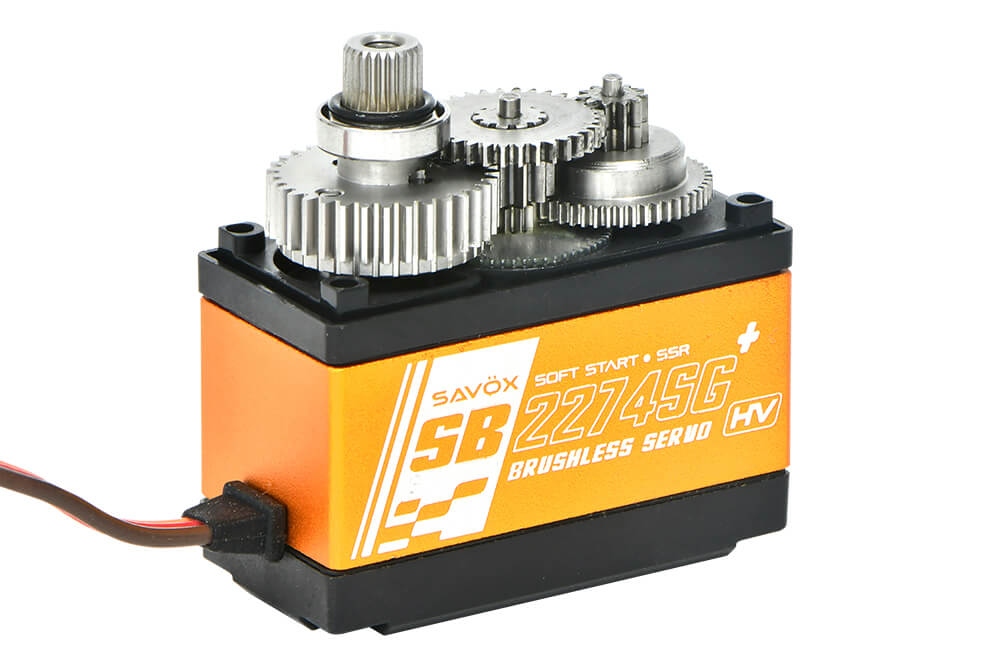

  • Gear: Unique Steel
  • Bearing: 2BB
  • Case: Full Aluminum
  • 25 Tooth Spline

Savox Plus / "+" Models: feature a new Soft Start Mode and Sanwa SSR compatibility.


Unsure which servo you need for your model?

Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
