HOBBYWING XERUN AXE PLUS R3 & AXE 550L 3300KV R2 MOTOR

Experience the best of control and power with the Combo Xerun AXE Plus R3 & AXE 550L 3300KV R2 Motor by Hobbywing. This combination offers precise control and impressive performance for RC enthusiasts seeking top-tier performance. The Xerun AXE Plus R3 ESC ensures a smooth ride, while the AXE 550L 3300KV R2 Motor delivers powerful acceleration. Together, they elevate your RC adventures to new heights, ready to tackle any challenge.

Features Motor

• FOC (Field-Oriented-Control) for super linearity and high torque
• Patented Staggered Pole rotor design for ultra-low torque ripple
• Applicable to all weather and track conditions
• Built-in high precision magnetic encoder

Technical Specifications Motor

Type: Brushless FOC
Pole: 4
KV Rating: 3300KV
LiPo Cells: 2S-3S
No Load Current: 4.7A
Outer Diameter: 36.0mm
Length: 63.8mm
Shaft Diameter: 5mm
Shaft Length: 15.5mm
Weight: 247g
Application: 1/10 Rock Crawler

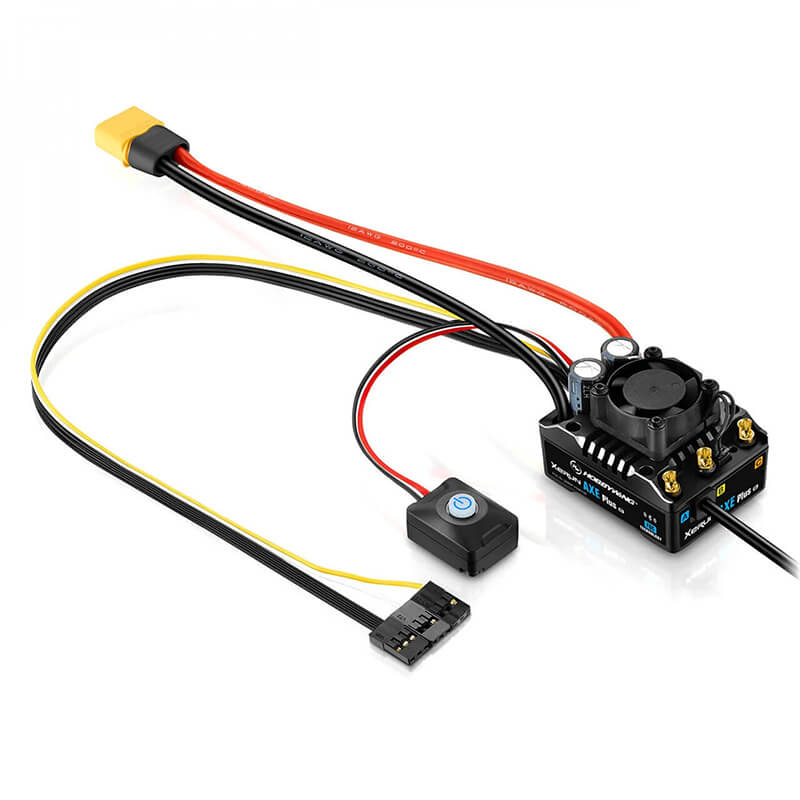

Features XeRun AXE Plus R3

• Stronger performance thanks to FOC (Field-Oriented-Control) technology.
• Drag brake adjustable up to 200% for unparalleled holding power on slopes.
• Super BEC with max. 6A and three voltage levels for using different servos.
• Waterproof and dustproof to IP67 standard.
• Smart torque delivery and speed control for easy control and constant speed under all loads.
• Built-in Bluetooth module.
• Multiple controller protection functions including reverse polarity protection.
• Only compatible with Xerun AX "R2" and "R3" motor series.

Technical Specifications XeRun AXE Plus R3

Type: Brushless Sensored FOC
Current (cont./peak): 135A / 600A
Cells: 2S-6S LiPo
Motor Limits: Only supports Xerun-AXE "R2" and "R3" motor series
AXE R2: 540 / 540L / 550
AXE R3: 4274
BEC: 6V / 7.4V / 8.4V @ 6A (Switch Mode)
Waterproof: Yes
Cables: 1x 12AWG (black, 265mm), 1x 12AWG (red, 265mm)
Fan: 25 x 25 x 10mm, powered by BEC
Connectors: XT60
Programming: Per Bluetooth and "HW LINK"-App
Firmware Upgrade: Yes
Dimensions: 49.5 x 37.9 x 32.8mm
Weight: 126.5g
Application: 1/10, 1/8, 1/6 Rock Crawler
