HOBBYWING XERUN AXE PLUS R3 & AXE 540L 2800KV R2 MOTOR

The Hobbywing Combo XeRun AXE Plus R3 with the AXE 540L 2800KV R2 Motor is a top-tier electronic speed control (ESC) and motor system designed for RC car enthusiasts who demand precision and performance. This combo features the latest advancements in Hobbywing's technology, ensuring smooth and precise control over your vehicle's movements.

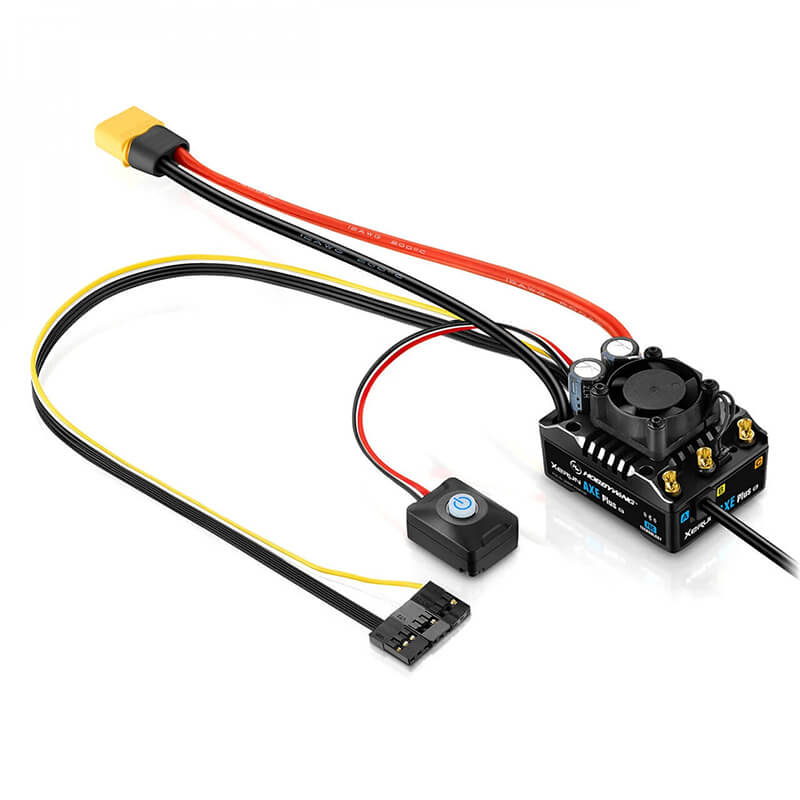

Features XeRun AXE Plus R3

• Stronger performance thanks to FOC (Field-Oriented-Control) technology.
• Drag brake adjustable up to 200% for unparalleled holding power on slopes.
• Super BEC with max. 6A and three voltage levels for using different servos.
• Waterproof and dustproof to IP67 standard.
• Smart torque delivery and speed control for easy control and constant speed under all loads.
• Built-in Bluetooth module.
• Multiple controller protection functions including reverse polarity protection.
• Only compatible with Xerun AX "R2" and "R3" motor series.

Technical Specifications XeRun AXE Plus R3

Type: Brushless Sensored FOC
Current (cont./peak): 135A / 600A
Cells: 2S-6S LiPo
Motor Limits: Only supports Xerun-AXE "R2" and "R3" motor series
AXE R2: 540 / 540L / 550
AXE R3: 4274
BEC: 6V / 7.4V / 8.4V @ 6A (Switch Mode)
Waterproof: Yes
Cables: 1x 12AWG (black, 265mm), 1x 12AWG (red, 265mm)
Fan: 25 x 25 x 10mm, powered by BEC
Connectors: XT60
Programming: Per Bluetooth and "HW LINK"-App
Firmware Upgrade: Yes
Dimensions: 49.5 x 37.9 x 32.8mm
Weight: 126.5g
Application: 1/10, 1/8, 1/6 Rock Crawler

Features AXE 540L 2800KV R2 Motor

• Minimal cogging torque
• Soft starting behaviour
• Optimized for sensitive performance development
• Waterproof and dustproof for almost every situation
• Including a newly designed waterproof sensor port
• The built-in high-precision magnetic encoder sends more information to the ESC than before

Technical Specifications AXE 540L 2800KV R2 Motor

Type: Sensored Brushless FOC
Poles: 4
KV Rating: 2800KV
LiPo Cells: 2-3s
No-Load Current: 3.6A
Outer Diameter: 36.0mm
Length: 57.8mm
Shaft Diameter: 3.175mm
Shaft Length: 16mm
Waterproof: Yes
Weight: 213g
Application: 1/10 Rock Crawler
