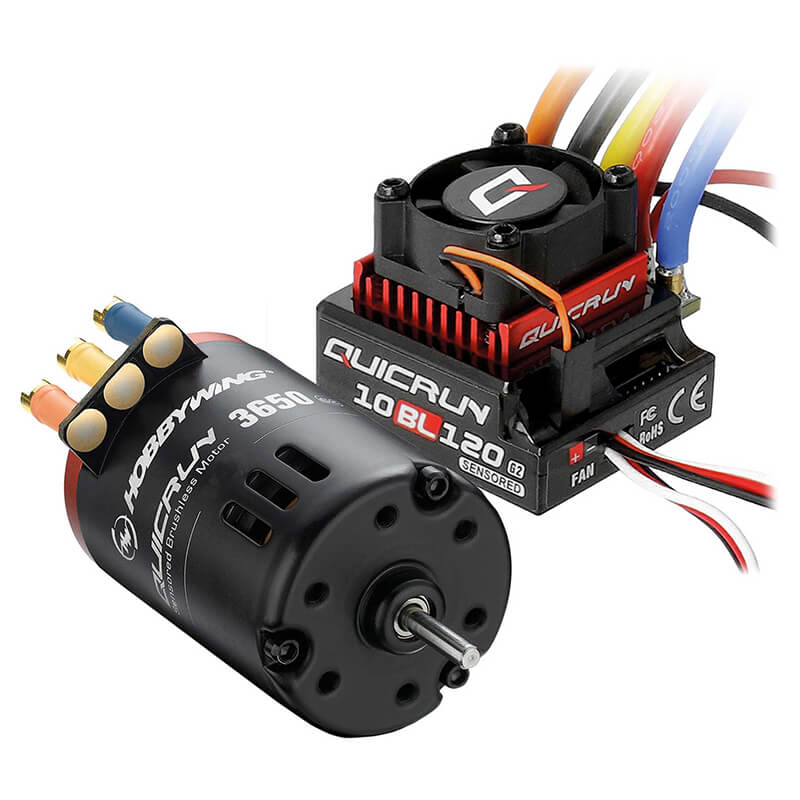

HOBBYWING QUICRUN COMBO ESC G2 10BL120/3650SD 13.5T MOTOR

  • Part Number: HW38020382
  • Brand: HobbyWing
  • Availability: Out of stock
    Expected On: 22/11/2024
    Email me when in stock
    Check out Shop Finder for local RC shops
RRP : £109.99 Where To Buy?

Description

This Quicrun combo includes the G2 version of the Quicrun 10BL120 controller as well as a versatile 3650SD G2 motor with around 13.5T or 2850kV. The 2nd generation of the Quicrun 10BL120 controller is a classic, solid brushless solution for 1/10 vehicles such as touring cars, buggies and drifters. With an extended BEC and a variety of additional parameters, the controller is in no way inferior to its predecessor. The QuicRun series from Hobbywing offers a cost-effective alternative for all drivers who simply want to achieve more with their setups - regardless of whether they have brushless motors or not.

Together, the two components form a cost-effective electronics team for beginners and advanced users alike.

Features (ESC)

  • A wide range of setting options (including turbo delay, turbo timing and boost timing)
  • Improved BEC output with switch mode instead of linear mode
  • Freely selectable motor rotation direction (CW or CCW)
  • Top performance at a low price
  • Compact design, suitable for a wide range of chassis
  • Ideal for many applications and competitions
  • Various protective functions:
  • Overheating protection
  • Low voltage shutdown
  • Features (motor):
  • 2-pole rotor design.
  • Smooth and linear power
  • Good heat dissipation
  • Plug 'n Play

Specifications (ESC)

Type: Brushless, Sensor
Current (continuous/short): 120A / 760A
Input Voltage: 2-3S LiPo
BEC: 6V / 7.4V at 4A (switch mode)
Motor Types: Brushless motors with and without sensor
Motor Limit: 2S: >= 4.5T, 3650 motor / 3S: > = 10.5T, 3650 motor
Fan: Yes, operated via the BEC
Programming: - SET button / - LED programming card / - LCD programming box (G2)
Dimensions: 44 x 36.8 x 32.3mm
Weight: 101.5g
Suitable Vehicles: 1/10 touring car, buggy, drift

Specifications Motor

Type: Brushless / Sensor
Poles: 2
Speed: 2850kV
Turns: 13.5T
Number of LiPo Cells: 2-3S
Current Idle: 2.4A
Outer Diameter: 36mm
Length: 52.8mm
Shaft Diameter: 3.17mm
Weight: 186g
Timing: Fixed

Technical Data

Cells: 2-3
ESC: Quicrun 10BL120 G2
Duration: 120 A
Engine: Quicrun 3650SD G2 mit 2850kv
Scale: 1:10
BEC: 6-7,4V/4A
Short: 760 A
Size (mm): 44/36,8/32,3 mm
Engine-type: Brushless Sensored
Set Weight: 287,5 g
Selection Category: Set
Engine Type 2: Inrunner
Drive Type: Electric

Best Used For

  • 1/10, 1/12 On-Road (racing or drift touring cars, F1, M cars, etc.) and Off-Road (buggies/2WD SCTs and trucks)
  • STOCK/SPORT class competitions
  • Beginners for practice and rock crawlers (applies to 21.5T and 25.5T motors)

What's Included

  • 1 x Quicrun 10BL120 G2 controller
  • 1 x Quicrun 3650SD G2 with 13.5T or 2850kV
