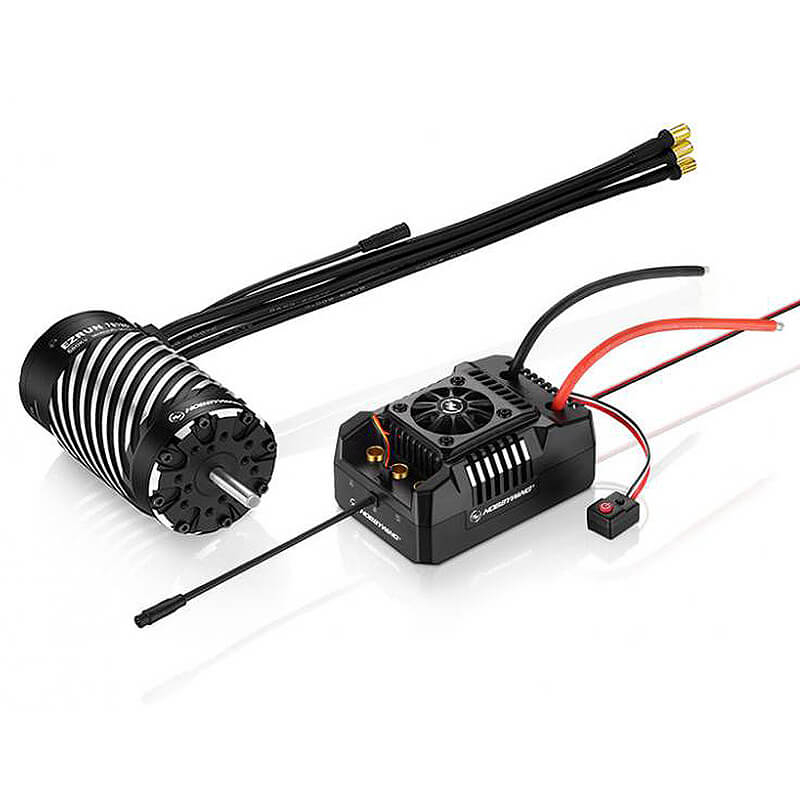

HOBBYWING COMBO EZRUN MAX4 HV ESC 70125/560KV MOTOR

Hobbywing EzRun MAX4-HV 300A Features

• Super-powerful BEC switching mode with 10A constant current and 25A instantaneous
• Flame-retardant circuit to protect the battery connectors
• Integrated protection: cut-off voltage, overheating, loss of signal, etc.
• Programmable via LCD Programming Card or OTA Module
• Real-time data recording

Specifications

Power: 300A with Peak at 2000A
Motor Type: Sensored and Sensorless
Motor Limit: 12S 600 Kv in 70125
Power Supply: Lipo 6 to 12S
BEC: 6 V / 7.4 V / 8.4 of 10A with Peak at 20A
Dimensions: 125x85x61.7mm
Weight: 775.4 g

Hobbywing EzRun 70125SD 560KV Sensored Motor Features

• Sensor mode in perfect combination with Ezrun MAX4-HV
• CNC aluminium housing, 0.2mm silicon steel sheets
• Four sintered NdFeB magnets for super torque, stable performance and explosive power
• New innovative sensor interface
• Waterproof and dustproof thanks to rolling rubber coating
• Independent high-precision encoder in the motor to communicate rotor position
• More power and less heat generation

Specifications

Power: 560Kv
Compatible: Lipo 8 to 12S
Motor Shaft: 8mm
Length: 125mm
Axle Length: 30mm
Diameter: 70mm
Weight: 1995g
