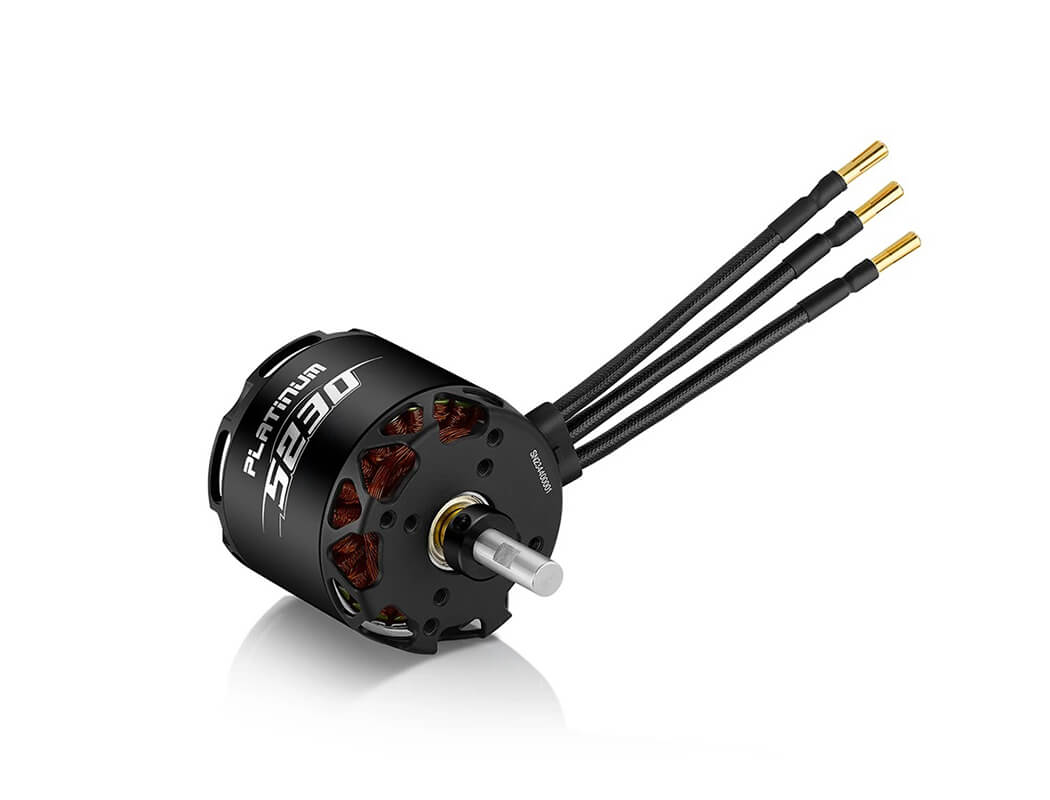

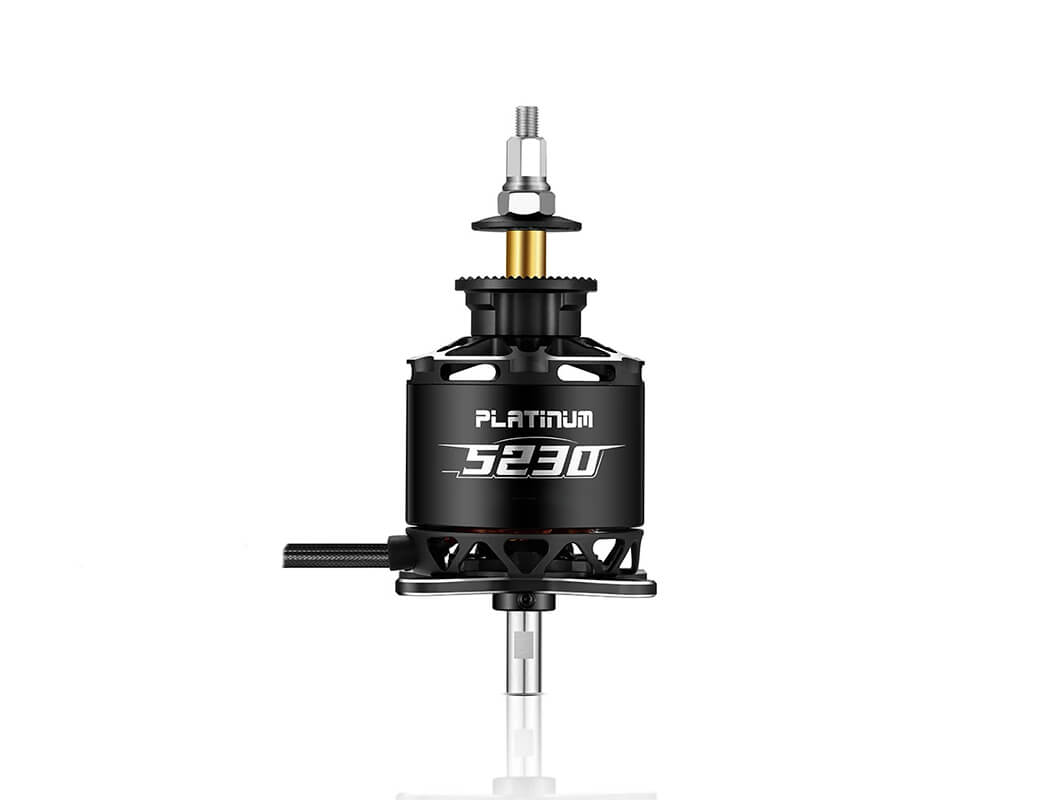

HOBBYWING PLATINUM 5230SL 190KV FIXED WING MOTOR

Specifications

Motor Size: Φ60.2 *93.5mm
Stator Size: Φ51.7*t30
Stator Process: High standard silicon steel sheet,180? high temperature resistance paint-coa
Enamelled Wire: 200?
Props Mounting Dimensions: Φ22mm-3*M4
Motor Mounting Dimensions: Φ30mm-4*M4;Φ44mm-4*M4
Slot & Pole: 24N28P
Dynamic Balance: ≤10mg
Bearing: 1560ZZ,698ZZ
Motor Axle Diameter: Φ8mm
Isolation Test: 500V AC high voltage resistance test
KV: 190
Battery (LiPo): LiPo-10~12S
No-load Current: 3.0A/44.4V
Maximum Current (Non-hermetic Ambient Temperature ≤ 25?: 112.5A/42s
Max Power: 4985W/42s
Max Thrust: 14.99kg
Resistance: 22mΩ
Wire Size: Enamelled Wire Output
Wire Length:100mm
Weight (With Wire): 582g
Recommended ESC: PLATINUM 130A V4 PLATINUM 180A V5
Recommended Propeller: 10S:20x10E,22x10E,22x12E 12S: 20x8E, 20x10E,22x10E
