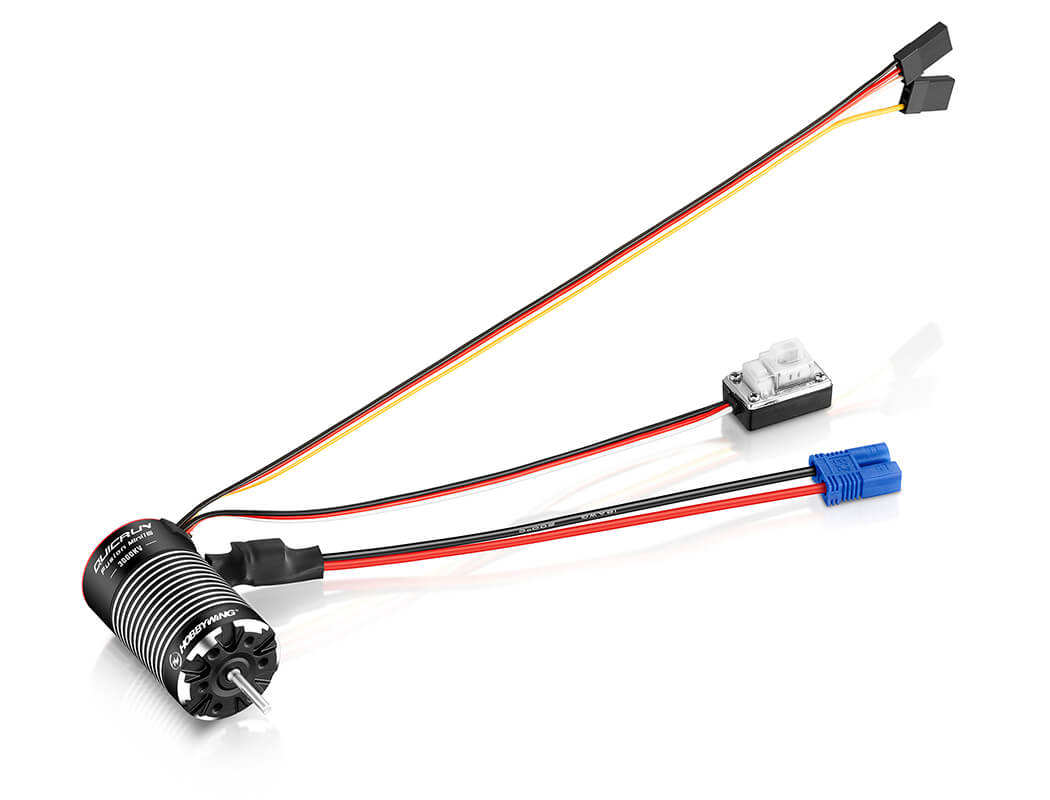

HOBBYWING QUICRUN FUSION MINI 16 CRAWLER ESC FOR 3000KV/370

Specifications

Type
Scale: 1/16th,1/18th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: Waterproof
Cont./Peak Current: 30A/80A
Input Voltage: 2-3S LiPo,6-9 Cells NiMH
BEC BEC Output: 6V/7.4V adjustable, continuous current 4A (Switch mode)
KV: 3000KV
Motor Poles: 4
Input Wires: Black-18AWG-150mm*1 Red-18AWG-150mm*1
Input Connectors: EC2

ESC Programing via
SET Button on ESC: Not Supported
LED Program Box: Supported
LCD G2 Program Box/LCD PRO: Supported
OTA Programmer: Not Supported
Program Port: Independent programming cable

Firmware
Firmware Upgrade: Not Supported

Size & Weight
Diameter / Length of Motor: 24mm/42mm
Shaft Diameter / Exposed Shaft Length: 2.3mm/13.5mm
Weight: 72g(including wires&connectors)
Applications: 1/16th,1/18thRock Crawler
