HOBBYWING XERUN XR10 PRO WP 160A SPEED CONTROL

Info

HobbyWing Logo

HOBBYWING XERUN XR10 PRO WP 160a SPEED CONTROL

  • Part Number: HW30112618
  • Brand: HobbyWing
  • Availability: In Stock
RRP : £224.99 Where To Buy?

Description

Reliable hardware combined with intelligent software (containing 9 common select-to-use profiles) creates an ideal power solution to 1/10th scale top touring car, Pan car and buggy racing.

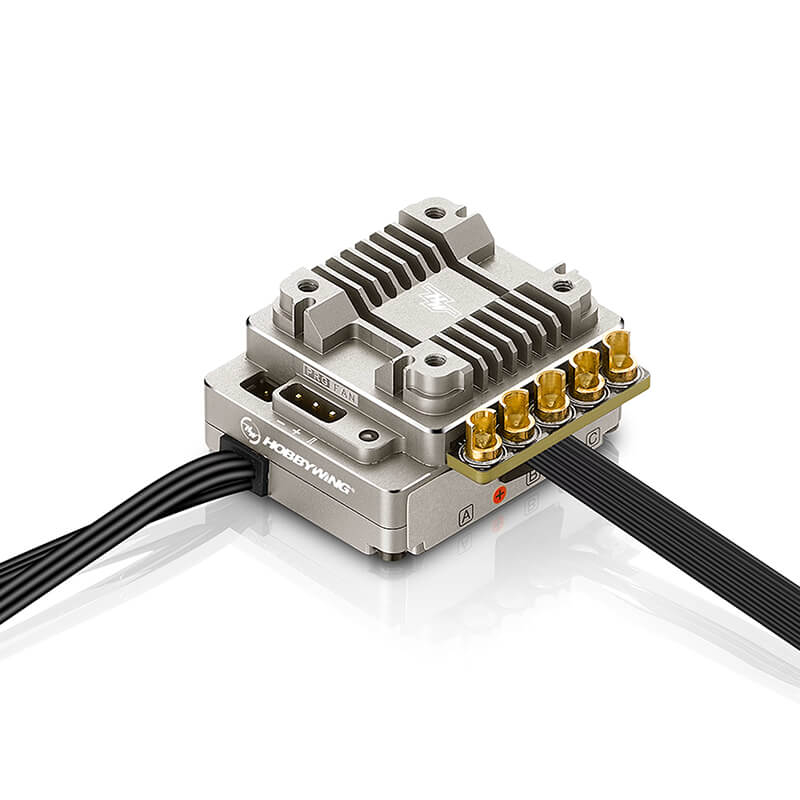

The aluminium casing and reticular heat sink combined with the HOBBYWING patented copper heat-conductive plates which are attached to the MOSFET board allows the internal heat to be quickly transferred to the heat sink for dissipation. With the high-performing detachable smart stop&start cooling fan, a highly reliable heat transfer system for maximum cooling is accomplished.

This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in real time and allows the user to analyse the recorded data via a the LCD program box or WiFi module after each use.

Features

  • High Power Output
  • Special Design for Top Racing
  • Programming / Upgrading / Data reading wirelessly
  • Adjustable Throttle & Brake PWM Frequencies
  • Efficient Heat Dissipating System
  • High current/voltage BEC
  • Separate Programming/Fan Port
  • IP67 All Weather Operation
  • Smart Stop & Start Fan
  • Innovative data-logging Function

Specifications

  • Scale: 1/10th
  • Brushed/Brushless: Brushless
  • Sensored/Sensorless: SD/SL
  • Waterproof: Yes
  • Cont./Peak Current: 160A/1200A
  • Input: 2S LiPo Only
  • BEC Output: Switch Mode: 5V-7.4V Adustable,5A
  • Input Wires: Black-13AWG-200mm*2
  • Output Wires: Black-13AWG-200mm*3
  • Input Connectors: No
  • Output Connectors: No
  • Fan Size: 25.0x25.0x10.0mm
  • Fan Voltage Range: 5-7.4V
  • WiFi Module: Supported
  • LCD Program Box: Supported
  • Size: 37.7x37.2x19.6mm (w/o Fan)
  • Weight: 95.6g (w/ Wires)
