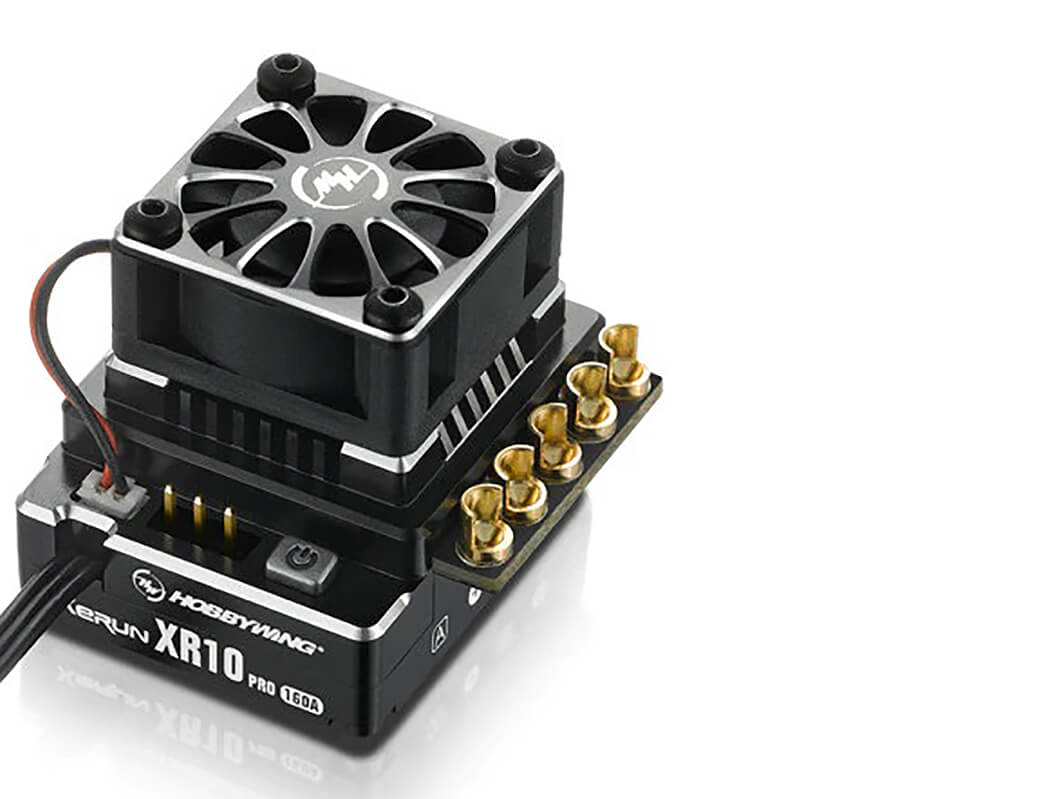

HOBBYWING XERUN XR10 PRO SPEED CONTROL - BLACK

Info

HobbyWing Logo

HOBBYWING XERUN XR10 PRO SPEED CONTROL - BLACK

  • Part Number: HW30112600
  • Brand: HobbyWing
  • Availability: In Stock
RRP : £139.99 Where To Buy?

Description

Reliable hardware combined with intelligent software (containing 10 common select-to-use profiles) creates an ideal power solution to 1/10th scale top touring car, Pan car and buggy racing.

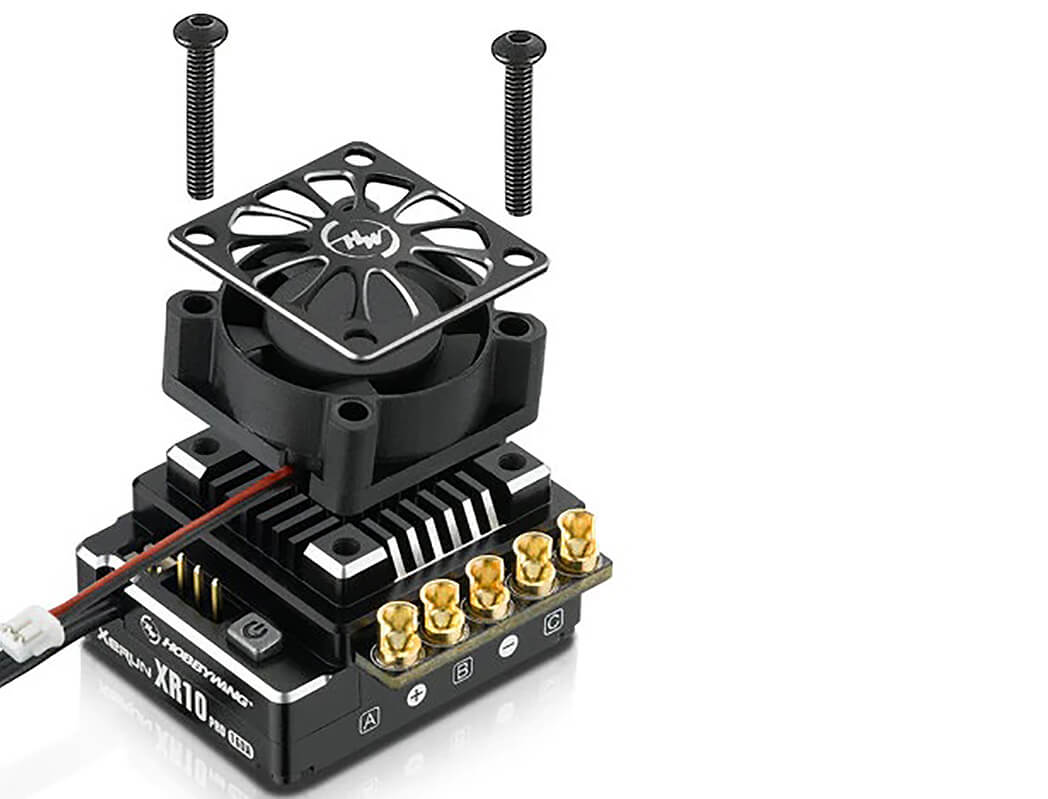

The aluminium casing and reticular heat sink combined with the HOBBYWING patented copper heat-conductive plates which are attached to the MOSFET board allows the internal heat to be quickly transferred to the heat sink for dissipation. With the high-performing detachable cooling fan, a highly reliable heat transfer system for maximum cooling is accomplished.

The internal electronic switch with a lifespan of over 50000 on/off cycles completely solves the problems like stuck reed, rusted contact points, and automatic shutdown conventional mechanical switches often have.

This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in real time and allows the user to analyse the recorded data via a the LCD program box or WiFi module after each use.

Features

  • High Power Output
  • Special Design for Top Racing
  • Programming / Upgrading / Data reading wirelessly
  • Adjustable Throttle & Brake PWM Frequencies
  • Efficient Heat Dissipating System
  • High current/voltage BEC
  • Separate Programming/Fan Port
  • Advanced and Secure Electronic Switch
  • Innovative data-logging Function

Specifications

  • Scale: 1/10th
  • Brushed/Brushless: Brushless
  • Sensored/Sensorless: SD/SL
  • Waterproof: No
  • Cont./Peak Current: 160A/1200A
  • Input: 2-3S LiPo/4-9 Cell NiMH
  • BEC Output: Switch Mode:6V/7.4V,4A
  • Input Wires: Black-12AWG-200mm*2
  • Output Wires: Black-12AWG-200mm*3
  • Input Connectors: No
  • Output Connectors: No
  • Fan Size: 25.0x25.0x10.0mm
  • Fan Voltage Range: 5-7.4V
  • WiFi Module: Supported
  • Size: 37.5x30.9x31.6mm(w/Fan & Fan Shroud)
  • Weight: 95g (w/ Wires)
