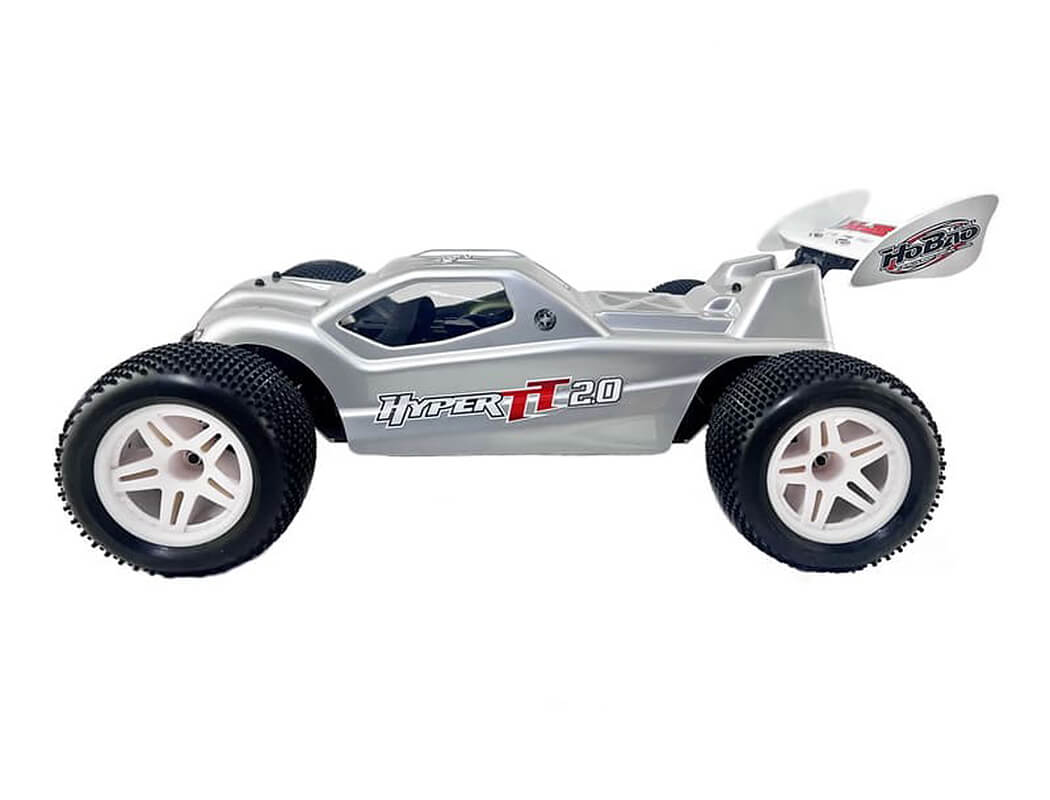

HOBAO TT2.0 PRO TRUGGY TRUCK RTR WITH SILVER BODY

Specifications

Radio:

• 3-channel 2.4GHz FHSS with dual rate steering and throttle, charge jack on transmitter for optional NiCd batteries.

Servo:

• High output ball bearing.
• Metal gear.
• Digital.
• 18kg-cm torque.

Motor:

• 3900Kv brushless.
• 4 pole.
• Outer Diameter ø36mm.
• Shaft ø3mm.

ESC:

• Hobbywing 60A waterproof ESC with single Deans plug battery connectors.
• Cooling fan and program card.

Chassis:

• Lightweight.
• Hard anodised CNC aluminum.
• 3mm thick.

Centre Top Brace:

• Wire pass through.
• Easy to remove with a single screw.

Drive:

• Central: Single ø4mm Hardened steel centre driveshaft.
• Optional Aluminium driveshaft H0P1-0072.
• Front: CVA axles, ø3.2mm Hardened steel.
• Rear: Dogbone, axles, ø3.2mm Hardened steel

Differentials:

• Center diff is directly connected to rear diff.
• Front, Rear and Center Differential, Metal Bevel gear, Anti-leakage Differential housing.
• Pinion Gear: 10T (MOD 1)/ Ring Gear: 39T (MOD 1).
• Center Spur Gear: 40T (MOD 1).
• Front differential filled with 5K silicone oil.
• Center differential filled with 5K silicone oil.
• Rear differential filled with 3K silicone oil.

Shocks:

• Filled with 600 silicone oil.
• Aluminium 12mm Big Body.
• 3.5mm Shaft.
• Aluminium Adjustable Ring.
• Shock Cap Protector.

Spring:

• Front: 0.86kg/cm, L=50mm, Blue.
• Rear: 064kg/cm, L=65mm, Blue.
• Optional Front Spring H0P1-0073: 1 kg/cm, L=50mm, Grey.
• Optional Rear Spring H0P1-0074: 0.73kg/cm, L=65mm, Grey.
• Shock Tower: 3mm, CNC aluminium.
• Optional carbon fiber shock tower, Front tower H0P1-0070 & Rear tower H0P1-0071.

Suspension:

• Front PBS.
• Optional aluminium steering block set H0P1-0077: Alumumium rear hub H0P1-0079.

• New strengthened composite upper arms and lower arms.( Also Fitting for older versions of the TT10).
• Optional carbon fiber arm insert H0P1-0068 and H0P1-0069.

• Front & rear anti-roll bars.
• Front and rear mg alum arm holder with pill inserts #11367, adjustable toe angles and anti-squat angles.

Steering:

• New Steering Crank set with CNC aluminium rack and hard spring.
• Ball bearing equipped with servo saver.

Battery tray:

• Motor Gear: 13T (MOD 1).
• Spur Gear: 40T (MOD 1).

Motor Mount:

• CNC aluminium laydown motor mount.
• Fitting for motors with size below 38mm.
• Spur gear cover.

Tyres:

• Pin-spoke tyres.

Wheels:

• 5-Spoke wheels.
• White.
• 12mm Hex.
• Diameter 62mm.
• Width 51.2mm.

Ball Bearings:

• Full set included.

Caster:

• Adjustable.

Camber:

• Adjustable.
