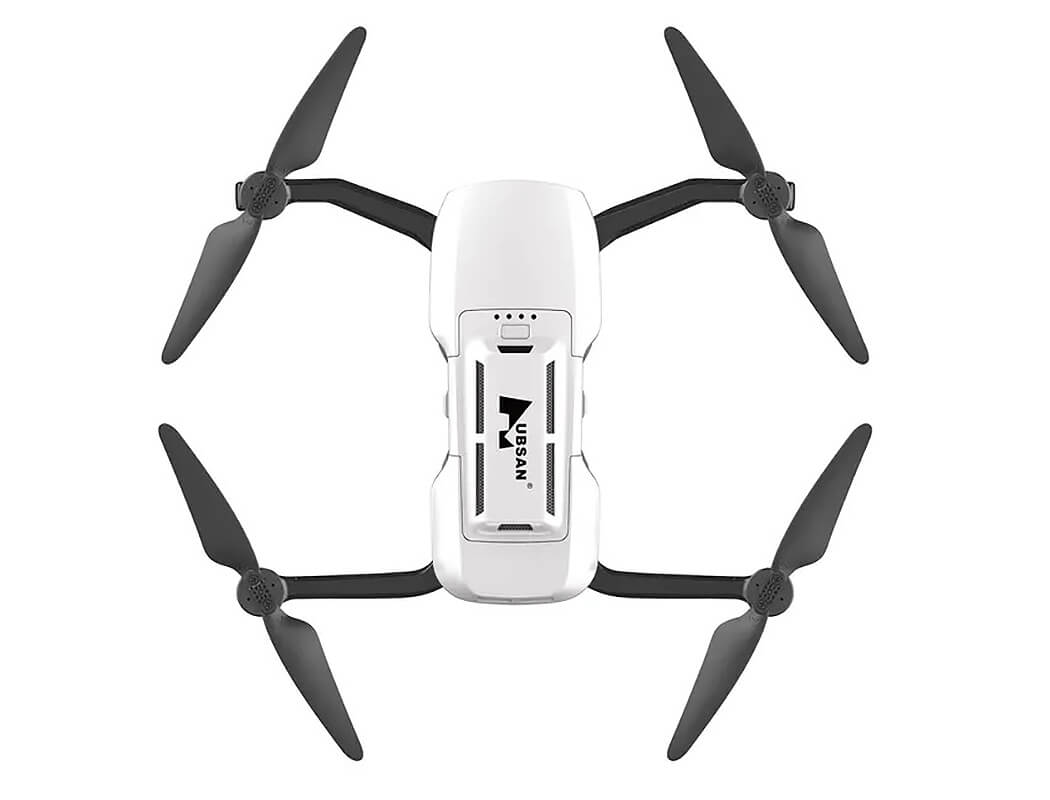

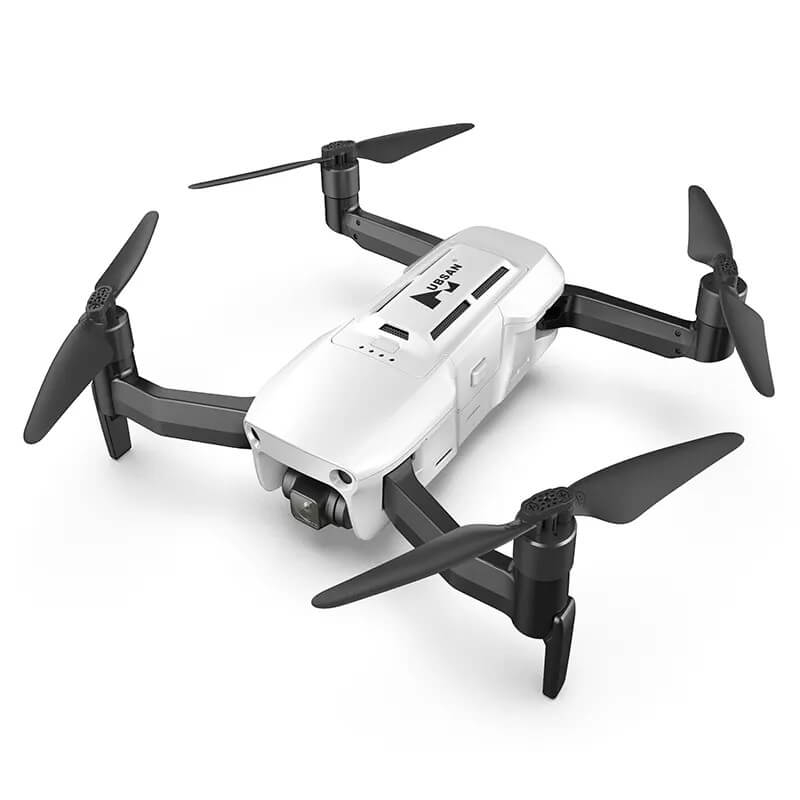

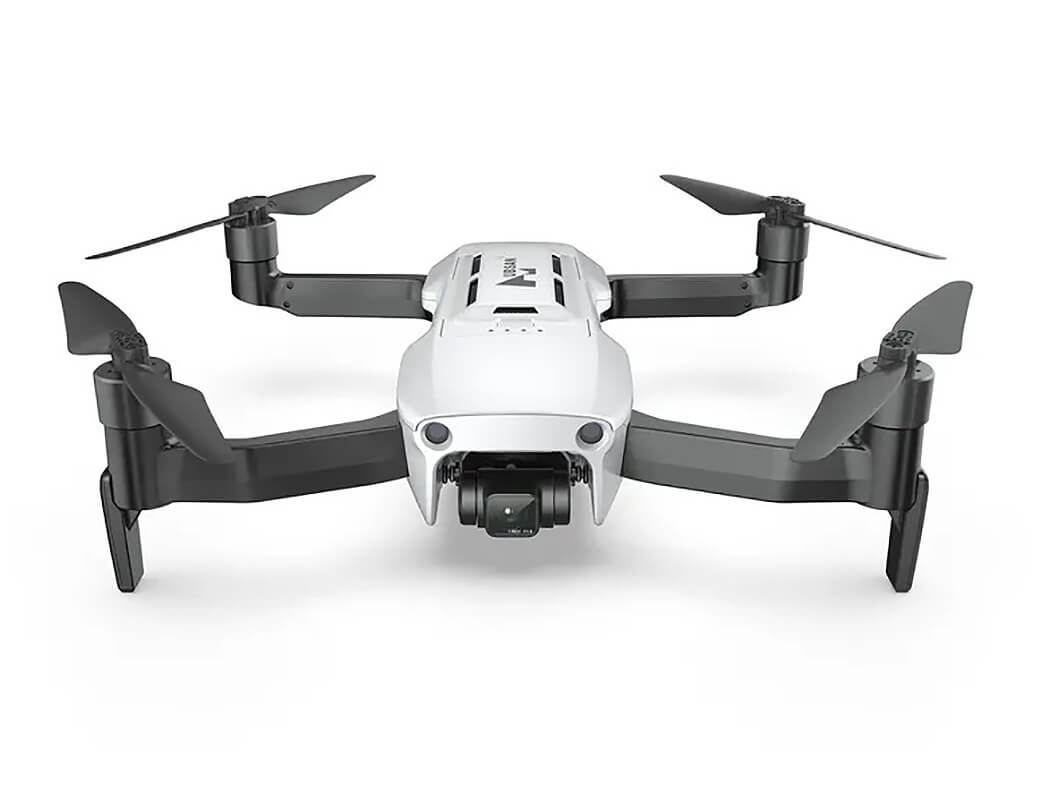

HUBSAN ACE 2 DRONE, TWO BATTERIES

Specifications

Material: Plastic, Blackhawk 2, ABS
Image Capture Resolution: 20MP
Operator Skill Level: Expert
Image Transmission Distance: 16KM
Maximum Flight Time: 53mins
Colour: White
Flight Time: 53Mins
Camera: FPV 4K 30FPS
OEM/ODM: Welcome
Size Expanded: 229.55*178*73.6mm
Size Folded: 118.7*172.5*67.6mm
Diaginal Wheelbase: 260mm
Maximum Current: 32A
Take-Off Weight: 600g
Hover Accuracy Indoor: Vertical ± 0.1m, Horizontal +/- 0.1m
Hover Accuracy Outdoor: Height <7m, Vertical <Height*0.02m
Maximum Ascending Velocity: 3m/s(N) 4m/s(S) 1m/s(F)
Maximum Descending Velocity: 1.5m/s(N) 3m/s(S) 1m/s(F)
Maximum Horizontal Flight Speed Normal Mode: 10m/s (N, No WInd At Sea Level)
Maximum Horizontal Flight Speed Sports Mode: 16m/s (S, No WInd At Sea Level)
Maximum Horizontal Flight Speed Movie Mode: 1m/s (S, No WInd At Sea Level)
Maximum Take-Off Altitude: 5000meters
Maximum Anti-Wind Capability: Grade 7 Wind
Maximum Tilt Angle: 30° (S) 20° (N) 20° (F)
Satellite Navigation System: GPS/GLONASS/Beidou
Duration Of Flight (Standard Battery): Hovering for 33 Minutes, Slow Flight Time 37 Minutes (Windless, Measured in 204 Meters Hovering)
Duration Of Flight (Long Life Batter): Hovering For 45 Minutes, Slow Flight Time 53 Minutes (Windless, Measured In 2-4 Meters Hovering)

Power System

Propeller Model: Folding Propeller Diameter 143mm
Propeller: Colour: Black
Motor Type: External Brushless Motor 1816
Motor KV Value: KV2060
ESC: Digital ESC Brushless 20A x4

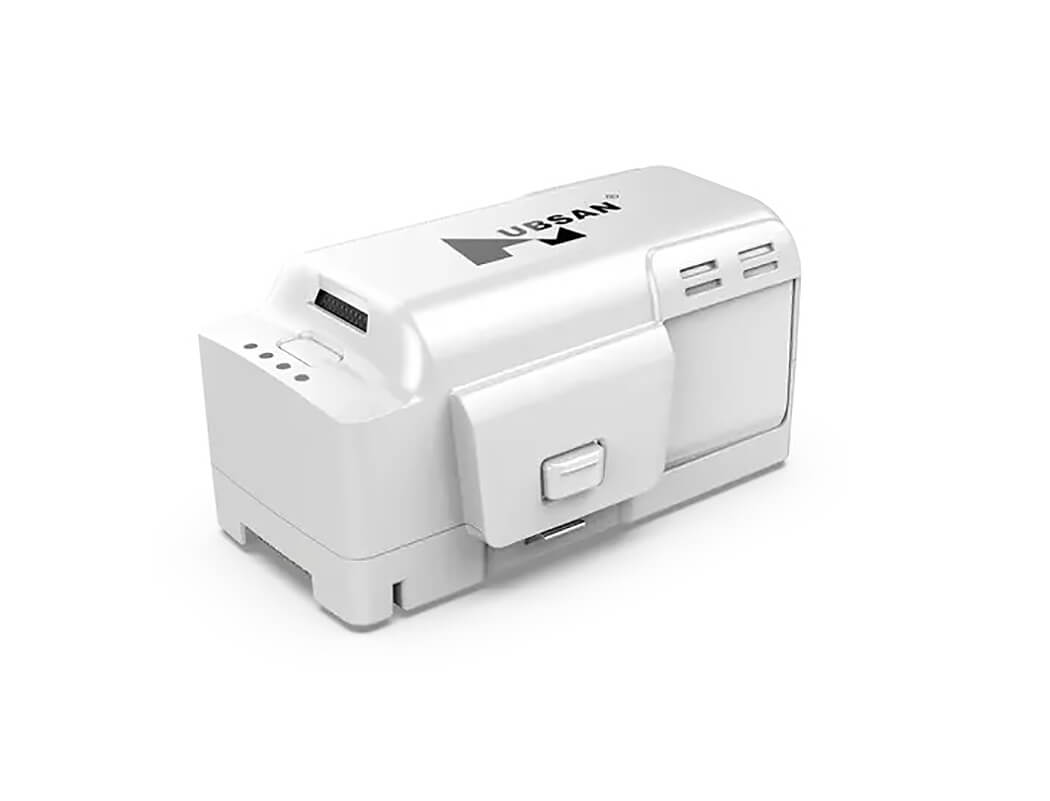

Battery

Category: Li-ion Battery 4S
Capacity (Standard): 3200mAh
Capacity (Long Duration): 5000mAh
Nominal Voltage: 14.4V
Charging Voltage Limitation: 16.8V
Discharge Limitation: 8C
Charging Time: 120 Minutes
Battery Weight (Standard): 230g
Battery Weight (Long Duration): 300g
Working Temperature: -5°~-40°
Charging Environment Temperature: 0°C~40°C
Smart Battery Balance: Support
Battery Smart Buckle: Support
Low Power Protection: Support
Struggle Mode: Support
Electrical REsistance Monitoring: Support
HBLog: Support
Smart Diagnosis: Support
Low Temperature Using: The Lowest Temperature Support - 35°
Remote Lock: Support
Online Upgrade: Support
Bulging Replacement: Support

Camera

CMOS Image Sensor: 1 Inch, 20 Million Effective Pixels
Lens Specifications:
FOV: 85°
Aperture: f/1.9
EFL: 6.8mm
Focus Point: 5m to Infinity
Distortion: <1.5%
Photo Format: JPEG
Maxmum Photo Size: 5472 x 3648
Video Resolution 4K: 3840 x 2160@30fps
Video Resolution 2.7K: 2720 x 1530@30/60fps
Video Resolution FHD: 1920 x 1080@/30/60fps
Video Format: MP4 (H.265/HEVC)
Video Bitrate: 100Mbps
HDR (Dual Native ISO): Support
Hlog: Support
Portrait Mode: Support
Night Mode: Support
CPU Power Managemant: Support
Short Video Mode: Match the Toktok's best resolution, bit rate and compression rate. The length of each video should not exceed 5 minutes.
Film Storgae Method: Built-In eMMC 8G SD Cadat Least U3 or Class 10 16G/32G/64G/128G
Firmware Upgrade: App Online Upgrade

Wireless Transmission System

Image Transmission Solution: SyncLeas 4+
Image Transmission Wideband: 20Mbps
Image Transmission Delay: Within 200ms
Control Delay: Within 40ms
Antenna: Built-In Dual Antenna
Default Controller: HT18MF
EIRP: FCC: <=26dbm; CE:<=20dbm; SRRC: <=26dbm
Wireless Transmission Range:FCC <=16Km; CE: <=11km; SRRC: <=14km

Gimbal

Flight Controller Version: Self-Developed Fourth Generation Flight Control
Degree Of Freedom: The Fourth Generation Of Mechanical Three-Axis Stabailisation Gimbal Technology
Maximum Pitch Speed: 120°/s
Rotation Range Pitch: -111.1°~+45°
Rotation Range Roll: ±35°
Rotation Range YAW: ±35°
Angle Jitter: ±0.001°

Flight Controller

Flight Controller Version: Fourth-Generation Flight Controller
Basic Flight Mode: Sports Mode / Mormal Mode / Mvie Mode
Altitude Hold: Tof, Barometer
Fixed-Point Function: Vision Optical Flow, GPS
Unlock/Lock: Outer-Eight Unlock/Lock
One-Click Take-Off/Landing: App Support, Remote Control Does Not Support
Out Of Control Protection: Support
Low Battery Return: Support
The Speed Limit Mode: Support
Waypoint Flight: Support (Including waypoint planning and waypoint memorisation)
Flying Around: Support (Including waypoint planning and waypoint memorisation)
Ray Flight: Support
Time-Lapse Photography: Support
Auto Drifting: Support
Blockbuster Mode: Support
Intelligent Cruising: Support
Chainsaw Mode: Support
Motor Stall Protection: Support
Firmware Upgrade: OTA

Perception

Visual Perception: The Second Generation Of Visual Obstacle Avoidance Algorithm
Home VI (Visual Identity) (Search The Apron): Support
Forward: Forward Vision Precision Measurement Range 0.5-12m, Deviation Value <0.5m, detectable range=>15m
Backward: Backward Vision Precision Measurement Range 0.5m-9m, Deviation Value <0.5m, detectable range=>12m
Dowmward: Downward Vision, Tof Precision Measurement Range: 0.3m, Deviation Value <0.1m
Vision Tracking: Third-Generation Tracking Technology

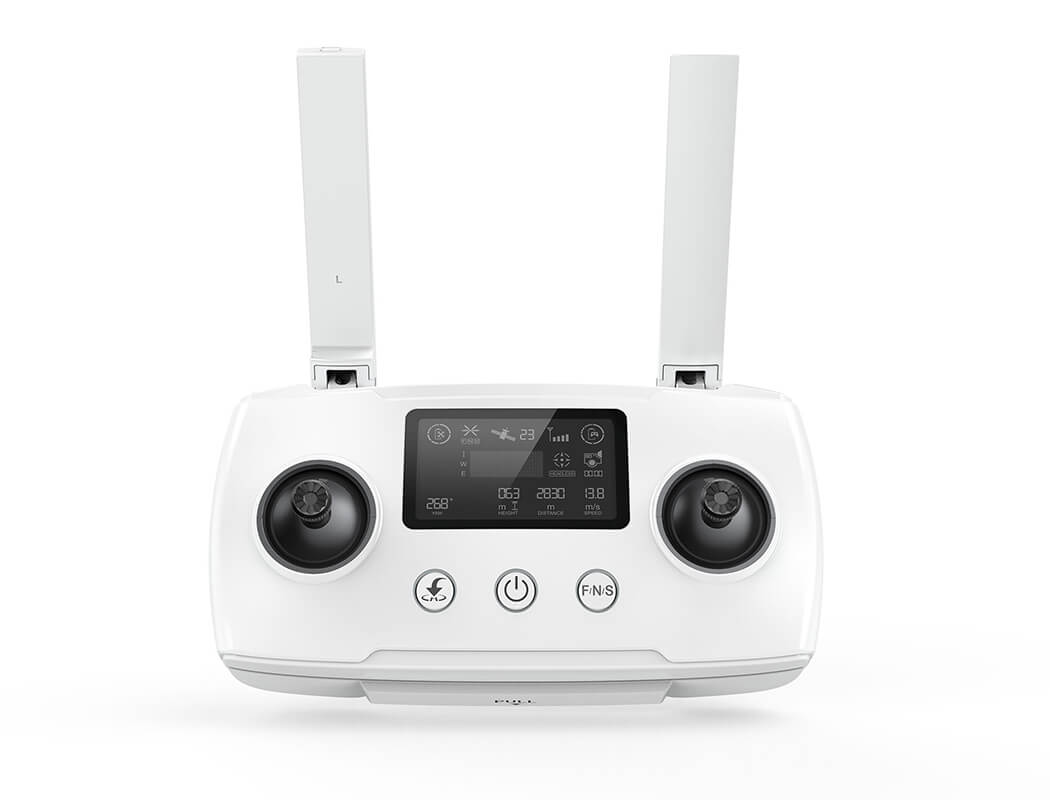

Remote Controller

Image Transmission Solution: Syncleas 4+
LED Display: Support
Working Environment Temperature: -5°-50°
Feffective Range: FCC: 16Km; CE: <=11km; SRRC: <=14km
EIRP: FCC: <=26dbm; CE: <=20dbm= SRRC:<= 26dbm
Built In Battery: 5000mAh
Buzzer: Support
Working Time: 3h (Normal Flight Time)
Rocker Return To Cener Accuracy: 4%
Supportable Interface Types: Lighting, MicroUSB, USB-C

App

App: X-Hubsan2
Mobile Device Requirements: IOS 10.0 or Higher, Android 6.0 or Higher
