GMADE 1/10 GS02 KOMODO RTR DOUBLE CAB TS

GM57005 - 1/10 GS02 KOMODO Double cab TS Ready to Run

Features

• TTR transmission
• Front weight balance
• 4 wheel drive
• CMS system

What's Included

• 2.4GHz Radio control system (transmitter & receiver)
• RS-540 27 turn motor
• Brushed electronic speed controller
• High torque standard servo

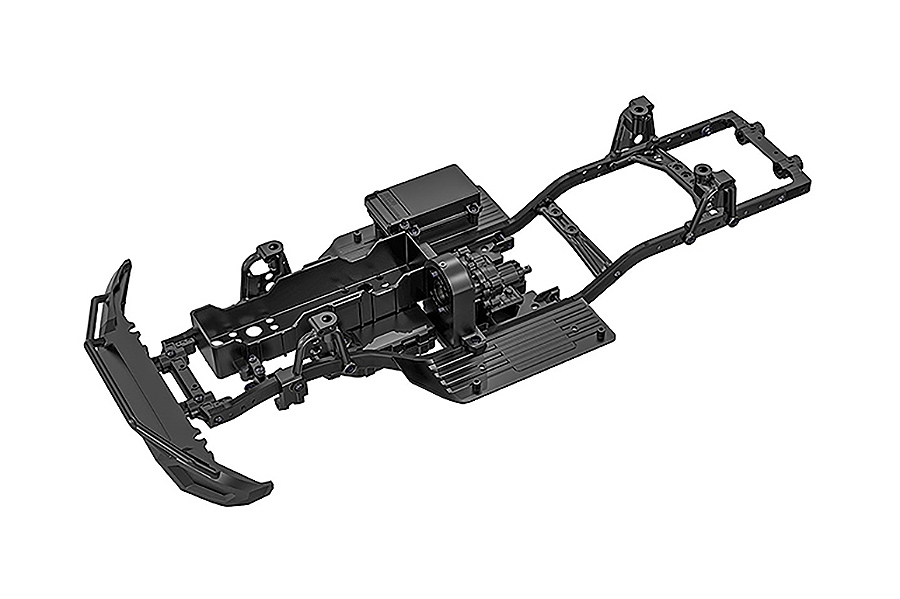

Frame

Steel Ladder Frame

GS02 frame is designed to look as a chassis of a real car frame and the material of the frame is made of high strength steel, C-channel side rail and is with hex wrench bolted with cross members, which make it resistant to twisting or wraping. Also, steel parts are black powder coated finish to prevent rust.

Adjustable Wheelbase

GS02 chassis allows three type of easy adjustment of wheelbase convert kit to use any type of 300, 313 and 324mm custom bodies. (optional link kits are sold separately)

Front Weight Balance

Komodo double cab's weight balance designed to be placed on the forward of the car. This will increase the tire tracktion to the front wheel to provide better crawling on a high tilt angle rocks and better driving performance when hill climbing and this will help minimizing the vehicle's rolling over when climbing.

Chassis Mounted Servo System with Panhard Bar

Komodo double cab's steering system has a steering servo on the frame just like a 1:1 real car. It is designed to make it as closed to the zero bump steer so bump steer movement does not appear by front wheel suspension movements, so we ended up with maximizing the steering performance of the vehicle. In addition, the Panhard-bar is designed to avoid interference with nearby parts, so that the front suspension and shocks can move freely without any loss.

Battery Tray

The battery can be easily replaced and can accommodate up to 7,600mAh 2-cell Lipo batteries or 5,000mAh 3-cell Lipo batteries. (7,600mAh 2-cell LiPo or 5,000mAh 3-cell LiPo).

Dust Proof Electronics Box

It protects electronic equipments such as winch controllers and BEC, which are often used for scale trucks, from foreign substances.

Skid Plate

The skid plate protects the transmission and other critical components by the flat surface that allows the Komodo double cab to slip and ride on rocks and other obstacles easily.

Drive Train

Drive Lines

The drive lines of the front and rear axles are arranged in straight-line to reduce the fatigue stress of the universal shaft and reduce the loss of driving power by providing efficient driving lines.

Easy Adjust Motor Mount

You can easily replace and install the motor pinion gear to changing the gear ratio.

GA44 Axle

GA44 axle is designed with the hardcore rock crawler in mind. Axles are made of high-strength meterials, and it will look and perform optimum off-road perfermance as real 1:1 vehicle when 4-Link suspensions added.

The GA44 axle housing is a durable one-piece type. The angle of the differential cover is designed to reduce the risk of damage due to frontal impact and is therefore very suitable for off-road driving.

Kingpin Angle

Keeping the scrub radius to a minimum to let your steering servo work at it's full potential and increases the steering efficiency.

Zero Ackerman Steering

The GA44 axle is using Zero-ackerman steering system with CVA to ensure maximum performance with a short turn radius and smooth motion even on rough off-road terrain.

SD Scaler Shock Absorber

SD Scaler Shock is a Coil-over styled oil shock absorber optimized for the scale trucks. The oil filled inside the shock minimizes splash when the vehicle is driven, and provides a high-durability aluminum shock body with 3.5mm heavy duty shock shafts are added, these will help you to drive roughly on rough surfaces. Beginners also can easily assemble this shock and change setups, and the adjustable nut makes it easy to adjust the ride-hight so you can quickly change your car setup even when driving condition changes.

Wheels & Tyres

MT-1903 1.9" M/T Off-Road Tire

MT 1903 off-road tire made of super soft compound material provides high traction to the surface. The treads of tire pattern are suitable for off-road driving and are designed with large diameter that enables to run smoothly on any uneven road surface.

1.9inch NR03 Wheel

Exterior

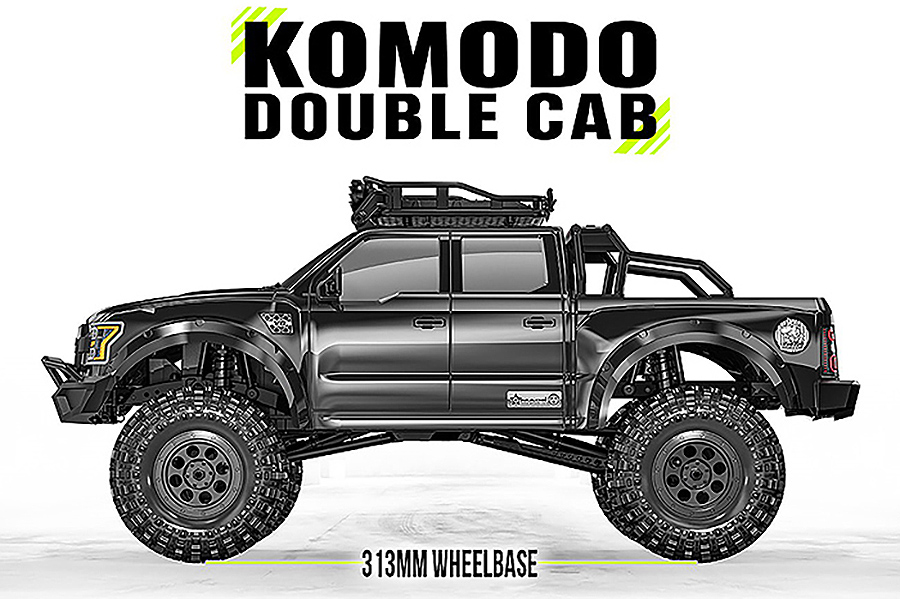

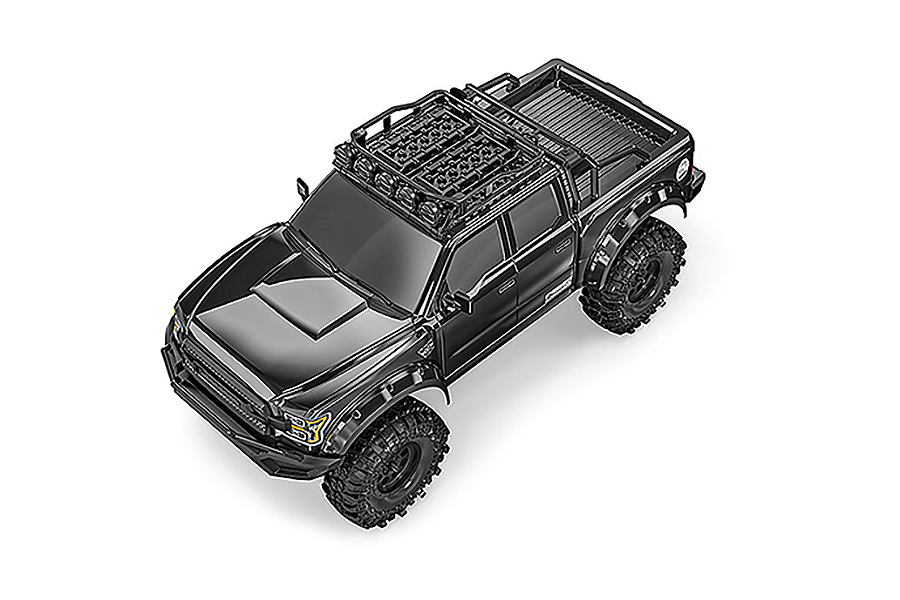

Komodo Double Cab Lexan Body

Komodo double cab body is made of 1.5mm thick high quality lexan and designed in pickup truck platform came out with strong and stylish detail body. Includes a grille, light bucket, side mirror, wiper grille and bumper and roll bars for off-road adventure concepts that add body detail, allowing you to tune to the look of a real off-road truck. Accessory parts are made of high-strength plastic and are extremely strong in impact and includes decals with realistic details.

Specifications
