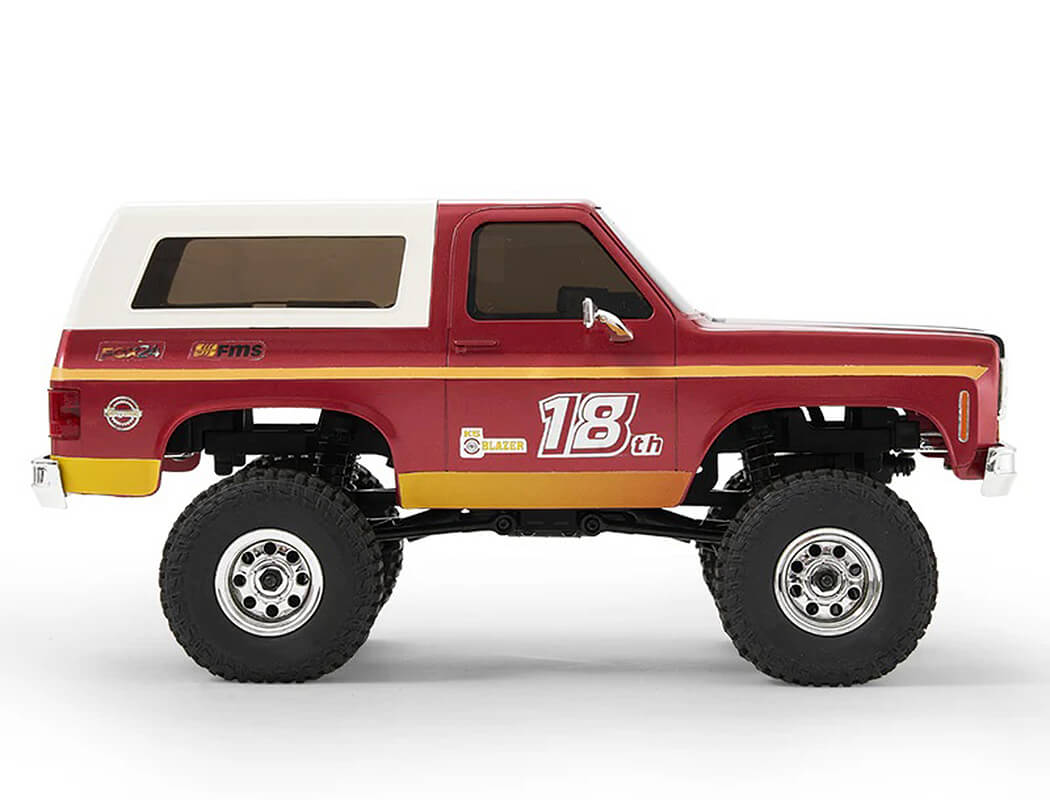

FMS 1:24TH FCX24 CHEVROLET K5 BLAZER PRO RTR - RED

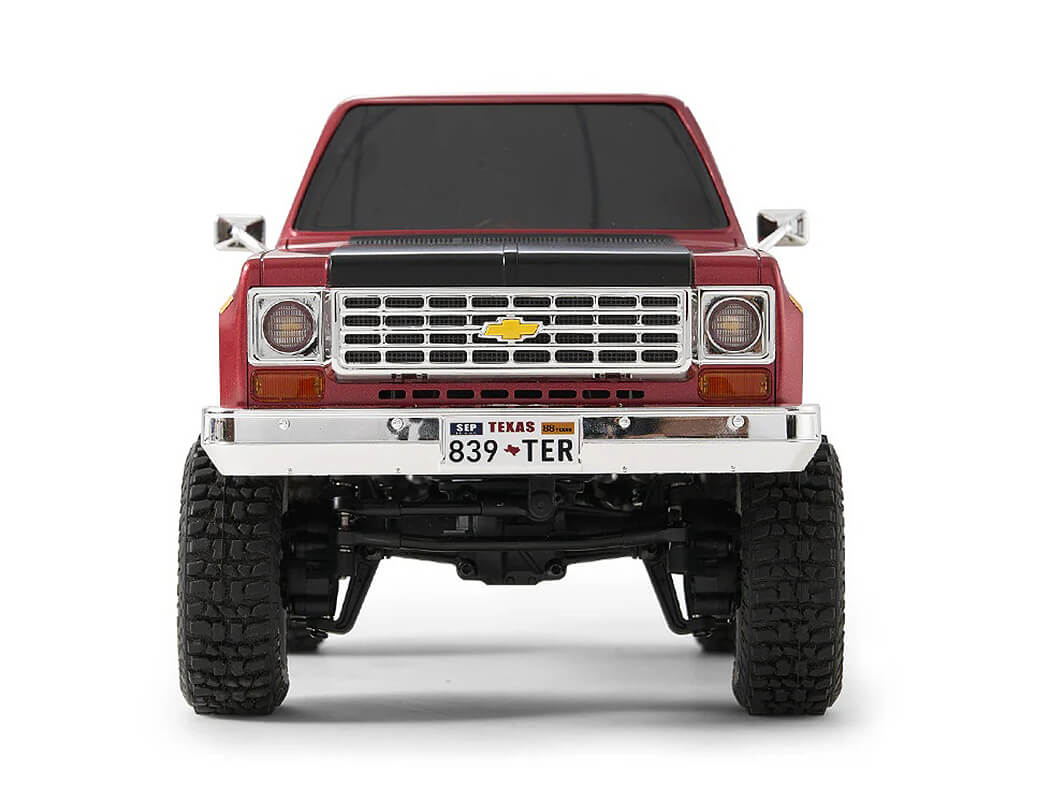

The 18th Anniversary Limited Edition Chevrolet K5 Blazer is faithfully reproduced under license from General Motors, where we retained the plated grille, front and rear bumpers, in addition to a rear roof canopy and roll cage (pick-up lights included) - removing the rear roof restores the short-wheelbase pickup truck form, switching between SUV and pickup truck at will.

The K5 adopts the FCX24 chassis, retaining the twospeed mechanical transmission from the original K5 Blazer, this limited- edition version is equipped with a 1212 outer rotor brushless motor for the first time, producing an exceptionally delicate linear control experience compared with brushed motors, allowing you to feel the vehicle crawl at literally a snail’s pace with a low uniform speed, perfectly under your full control. The outer rotor structure reduces the stator winding end effect, which is conducive to improving high-speed running performance.

The portal axle is another major feature of the FCX24. The chassis’ minimum ground clearance is improved using portal axles, resulting in improved crawling performance that far exceeds that of models of the same size, and this advantage is especially obvious when climbing extreme obstacles at low
speeds.

At present, there are several upgraded parts for the FCX24 chassis such as metal differentials, metal universal joint drive shafts, brass wheel weights and more. These parts not only further enhance the vehicles performance, but also provide a variety of personalization for your model so you can create a truly unique rig.

Features

• FMS 18th Anniversary Limited Edition Scheme.
• External rotor 1212 brushless motor 3200kv.
• Brushless Speed Control.
• 2S LiPo 7.4V 380mAh Battery.
• Full ball bearings.
• Metal linkage, metal gear solid axle, gearbox.
• Completed assembly.
• Micro two-speed mechanical transmission.
• Remote control light system.
• Portal axle (metal gears).
• Steering servo with metal gear.
• 4-link suspension.
• High-strength mixed-fiber nylon unibody frame.
• Quick release structure.
• Front grille, front bumper, and luggage rack.
• Lights are available as optional extras.

Specifications

Length: 253mm
Width: 129mm
Height: 128mm
Wheelbase: 139mm
Tyre F/R: Φ 54.8*19.5mm
Minimum Ground Clearance: 38mm
Approach Angle: 57°
Departure Angle: 45°
Motor: 1212 brushless motor 3200KV
Battery: 2S Lipo 7.4V 380mAh
Remote Control Distance: 30m
Approx. Operating Duration Time: 30mins
Remote Control: MG44 + R4P1 transmitter receiver set bs version

What's Included

• 1 x 1:24 Chevrolet K5 Blazer PRO RTR
• 1 x 2.4GHz Transmitter
• 1 x Brushless ESC (installed)
• 1 x Brushless Motor 3200KV (installed)
• 1 x 7.4V 380 mAh Battery
• 1 x USB Battery Charger
• 1 x Hex Wrench Socket
• 1 x Product Manual

Needed To Complete

• 4 x AAA Batteries for Transmitter
