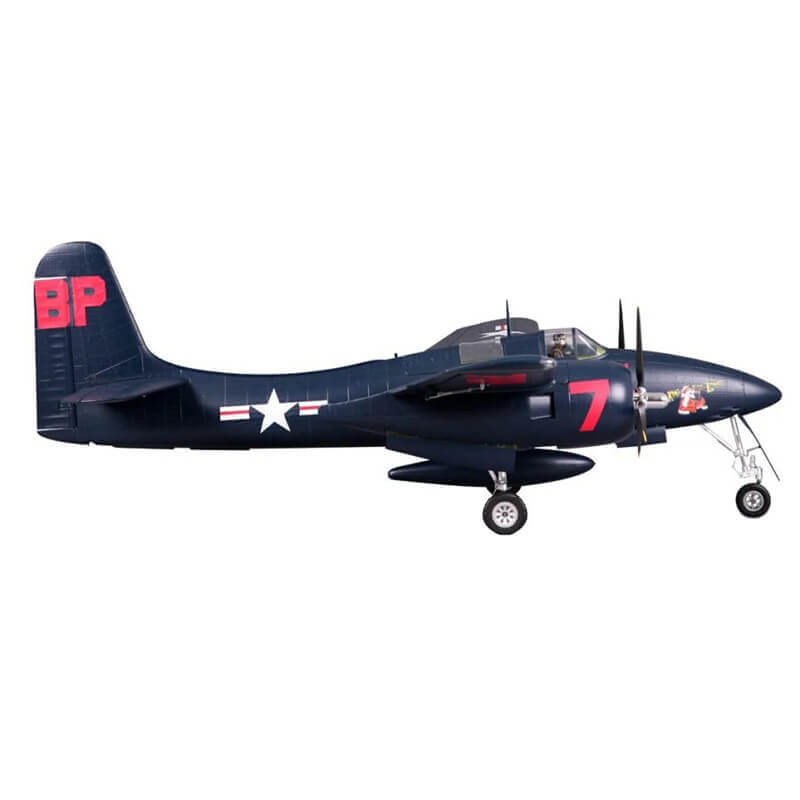

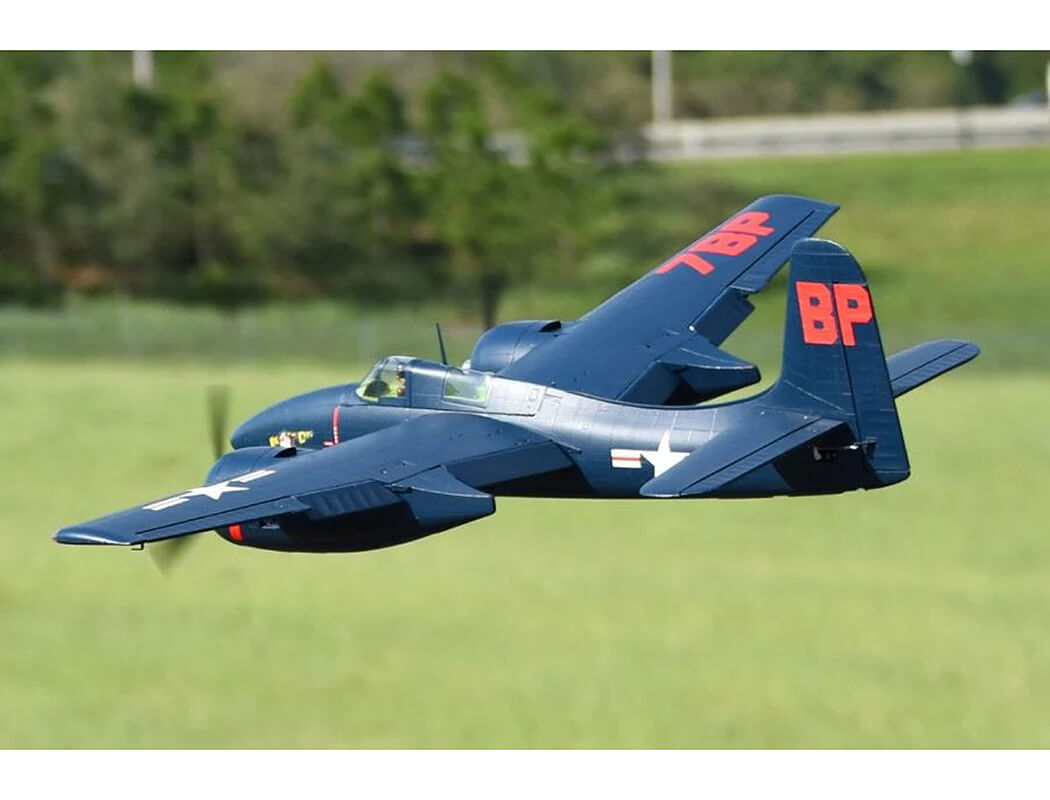

FMS 1700MM F7F TIGERCAT PNP BLUE

After almost two years development, numerous tests and improvements, we have reproduced the classical highly anticipated F7F! The FMS 1700mm Tiger Cat is coming!

The FMS 1700mm Tiger Cat pools the best structural features from FMS’ classic works. It adopts the popular quick and easy assembly and disassembly structure. In addition, with the latest multi-connect technology, FMS has streamlined the wing system, eliminating the wiring problems, and making it easier to install and dismantle in a short time. The well-designed battery compartment makes full use of airframe space, allowing for higher-storage batteries and more flying choices.

FMS’ warbirds are always attractive, no matter from the perspective of scaled appearance, or from excellent performance. This also applies to the Tiger Cat.

The Tiger Cat features the latest locked-rotor mode E-retract system with overcurrent protection, the refined scaled CNC-processed metal landing gear set (Certainly the most notable feature is that this is the most accurately scaled landing gear set we have ever created) for resisting those not-too-perfect landings, a 62mm diameter front wheel and 84mm diameter rear wheels for taking off and landing on both paved and grass surfaces. The power system utilises twin 4258-KV460 outrunner motors, twin 60A ESC (with 10A UBEC), providing surging power for scaled aerial combat maneuvers when coupled with a 6S 5000mAh 45C battery.

The Tiger Cat has the most scaled appearance, with scaled plastic parts throughout the body, e.g. landing gear door, cowl, artificial engine, and machine guns. Couple that with the detailed all-around rivets, panel lines, pilot figure, high bright LED lamps, a CNC-processed shock-absorbed metal landing gear set, the Tiger Cat is reproduced flawlessly. Furthermore, 4 set decals in the package (blue color scheme only) allow you to make your own Tiger Cat and stand out in your airfield

It is more than an RC model. It is one for the collectors. Go get the FMS 1700MM “Tiger Cat” to experience its magnificence.

Features

• Powerful twin 4258-KV460 motors with twin Predator 60A ESC (with 10A UBEC)
• The most accurately scaled landing gear set we have ever created
• Super high-scale detail throughout:
  - Scaled CNC-processed metal landing gear set
  - Pilot figure
  - Panel lines and all-around rivets…
  - high-brightness LED set
• The latest locked-rotor mode E-retract with overcurrent protection
• Metal digital servos for excellent controlling capacity
• Multi-connector for one-step installation
• Screw-together construction
• A 62mm diameter front wheel and 84mm diameter rear wheels for taking off and landing on both paved and grass surfaces.
• Large bearings in wheel hub for better performance
• Button Type canopy hatch
• Large battery compartment
• Four set decals for DIY (blue color scheme only), to be different.

Specifications

Wingspan: 1700mm/ 66.9in
Overall Length: 1,484mm/ 58.4in
Flying Weight: 5200g
Motor Size: Brushless Motor 4258-KV460 x 2
ESC: 60A x 2 With 10A UBEC
Servo: 7 x 13g metal analog, 5 x 17g metal digital
Radio: 6 Channel
CG (center of gravity): 70-80mm (From leading edge)
Prop Size: 14*8, 3 blades propeller
Recommended Battery: Li-Po 22.2V 5000mAh 45C
Aileron: Yes
Elevator: Yes
Rudder: Yes
Flaps: Yes
Retracts: Yes
Approx. Flying Duration: 5 minutes
Minimum Age Recommendation: 14+
Experience Level: Intermediate
Assembly Time: 30-60 minutes
Wing Area: 49.1d?/ 761sq.in

For further information: on flying your RC plane in a safe and responsible manner please check out www.bmfa.org
